Discharge Air Temperature Sensor / Switch: Locations

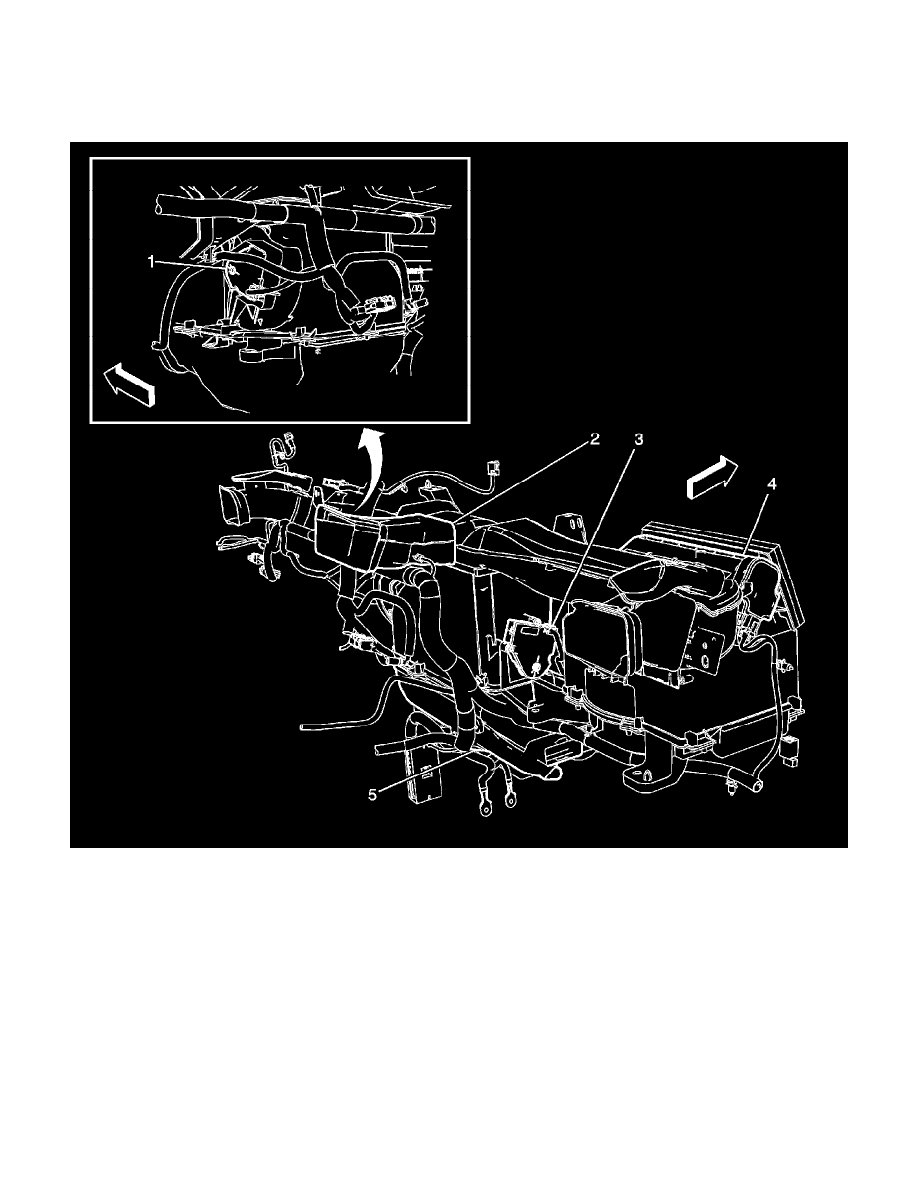

Instrument Panel/Center Console Component Views

HVAC Module

1 - Air Temperature Actuator
2 - Air Temperature Sensor - Upper (C68)
3 - Mode Actuator
4 - Recirculation Actuator
5 - Air Temperature Sensor - Lower (C68)
