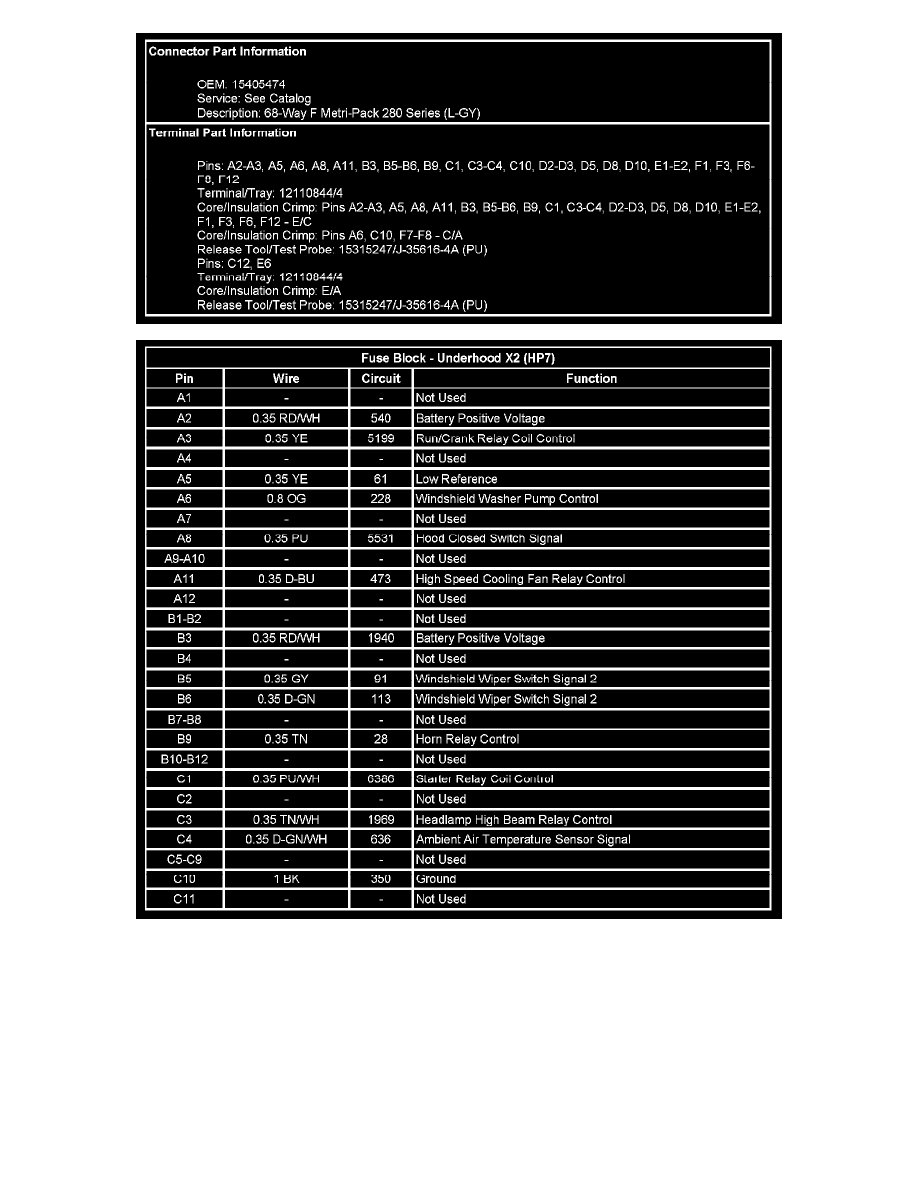

Fuse Block - Underhood X2 (HP7) (Pin A1 To C11)

Starting and Charging
Power and Ground Distribution
Fuse Block / Component Information
Diagrams / Diagram Information and Instructions
