Page 1

background image

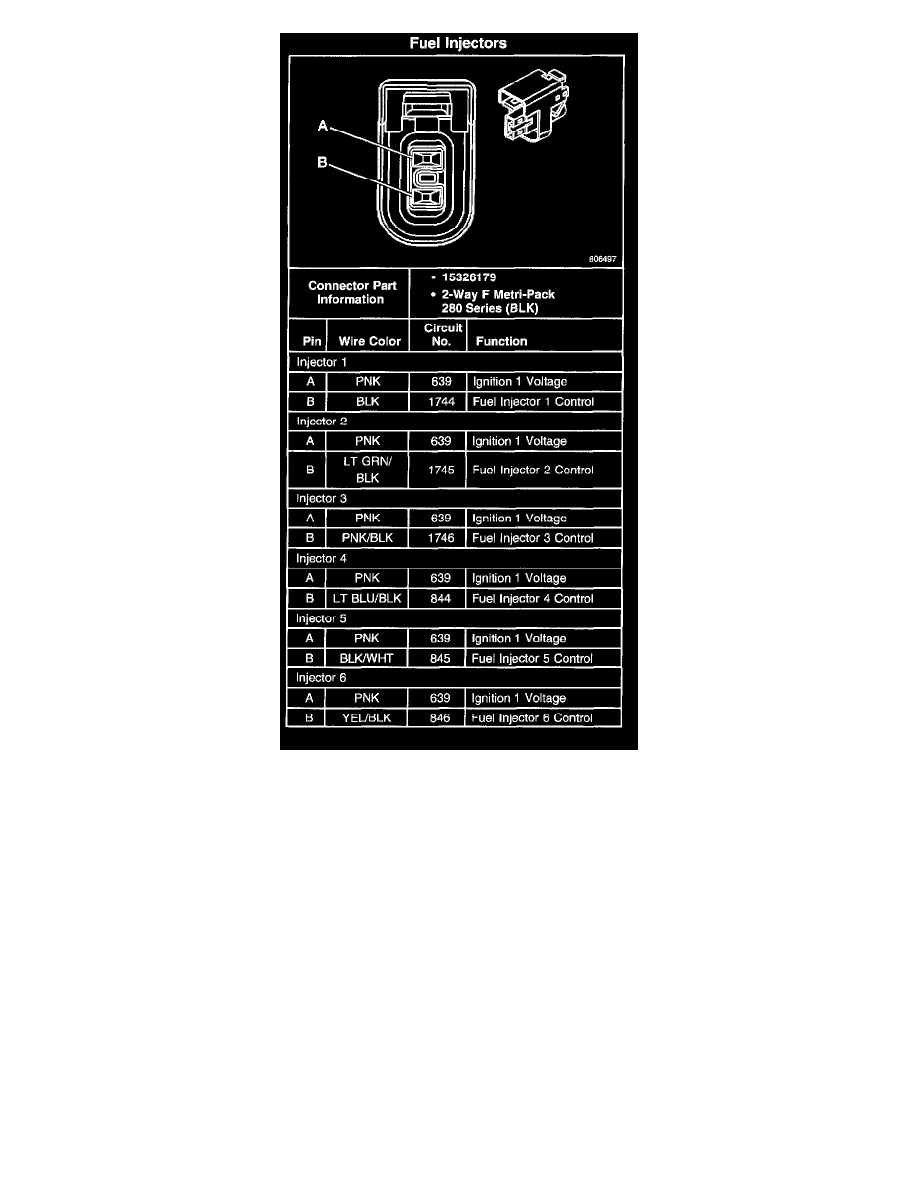

Fuel Injectors

Powertrain Management
Fuel Delivery and Air Induction
Fuel Injector / Component Information
Diagrams / Diagram Information and Instructions
Page 4632
