Malibu V6-3.1L VIN J (2002)

Page 1
background image

Fuel Filler Hose: Description and Operation

FUEL FILL PIPE

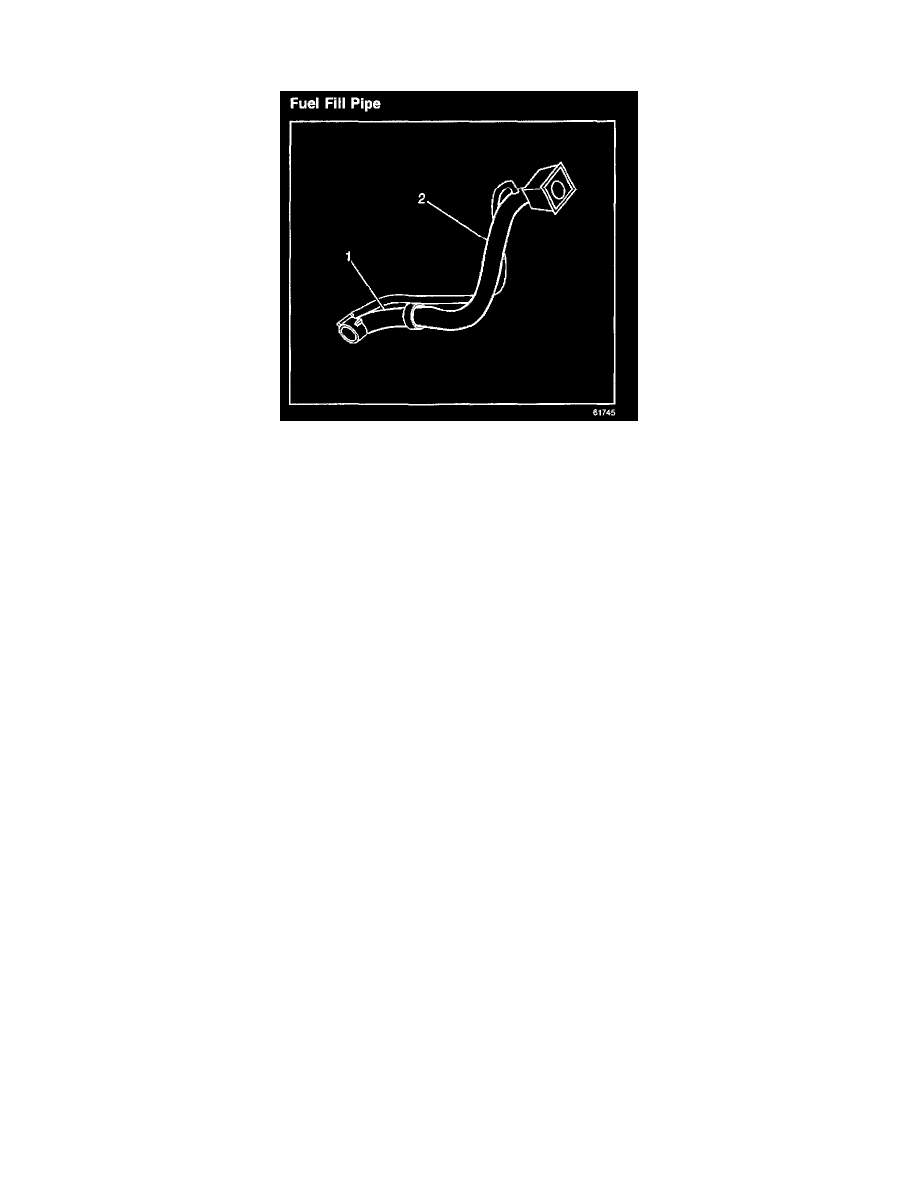

Fuel Fill Pipe

The fuel fill pipe (2) has a built-in restrictor and deflector in order to prevent refueling with leaded fuel.
