Malibu V6-3.6L (2010)
Fuel Filler Hose: Service and Repair
Filler Tube Replacement
Removal Procedure
Note: Clean the fuel and evaporative emission (EVAP) connections and surrounding areas prior to disconnecting the lines in order the avoid possible
system contamination.
1. Remove the fuel fill cap.
2. Drain the fuel tank. Refer to Fuel Tank Draining (See: Service and Repair/Procedures).

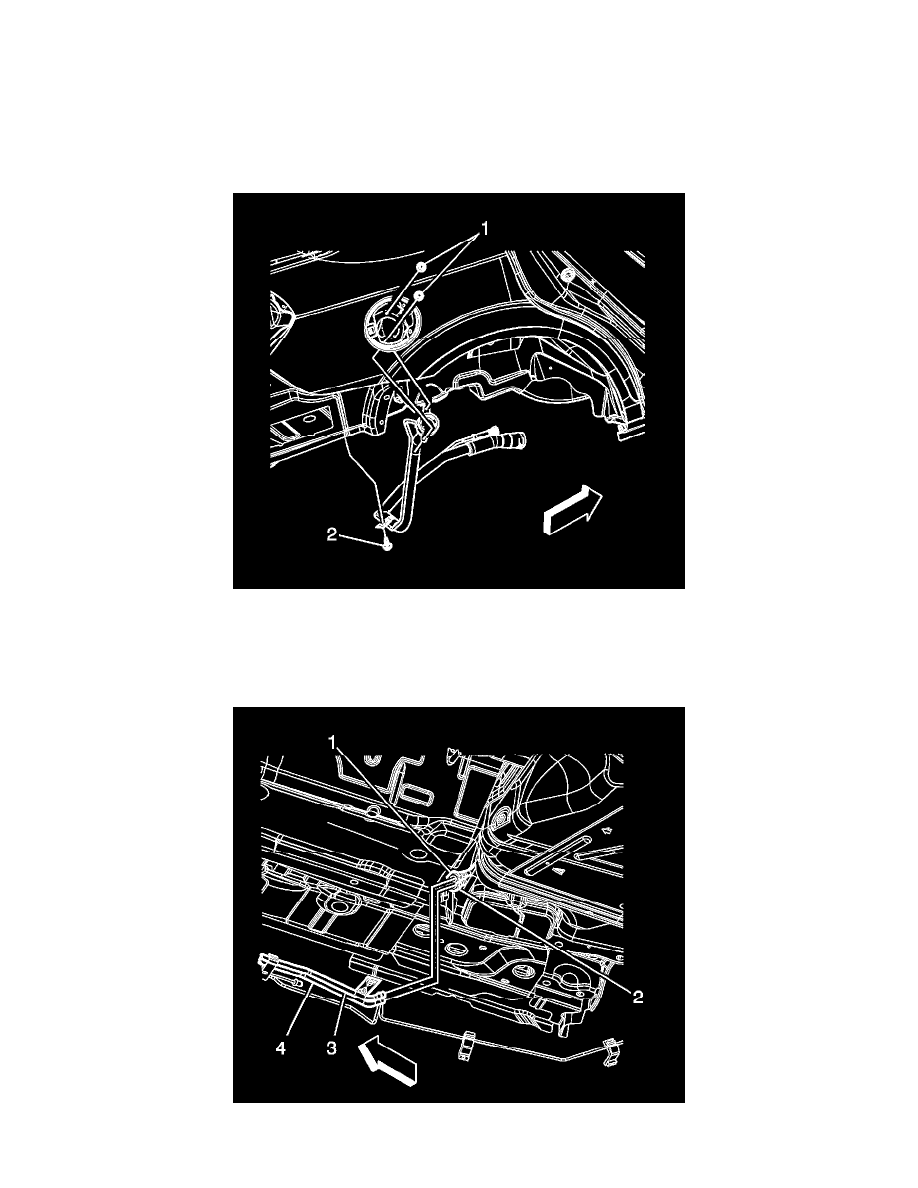

3. Remove the fuel tank fill pipe bolts (1) from the fuel tank fill pipe housing.
4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (See: Maintenance/Vehicle Lifting/Service and Repair).
5. Remove the fuel tank fill pipe bolt (2) from the underbody side rail.
6. Disconnect the fuel tank fuel feed pipe quick connect fitting (1) from the chassis fuel feed pipe (3). Refer to Plastic Collar Quick Connect Fitting
