Flex Plate: Specifications (page 2 of 3)

Flex Plate: Service and Repair

Engine Flywheel Replacement

Removal Procedure

1. Remove the transaxle. Refer to Transmission Replacement   (See: Automatic Transmission/Transaxle/Service and Repair/Removal and

Replacement/6T70/6T75 - Automatic Transmission/Transmission Replacement).

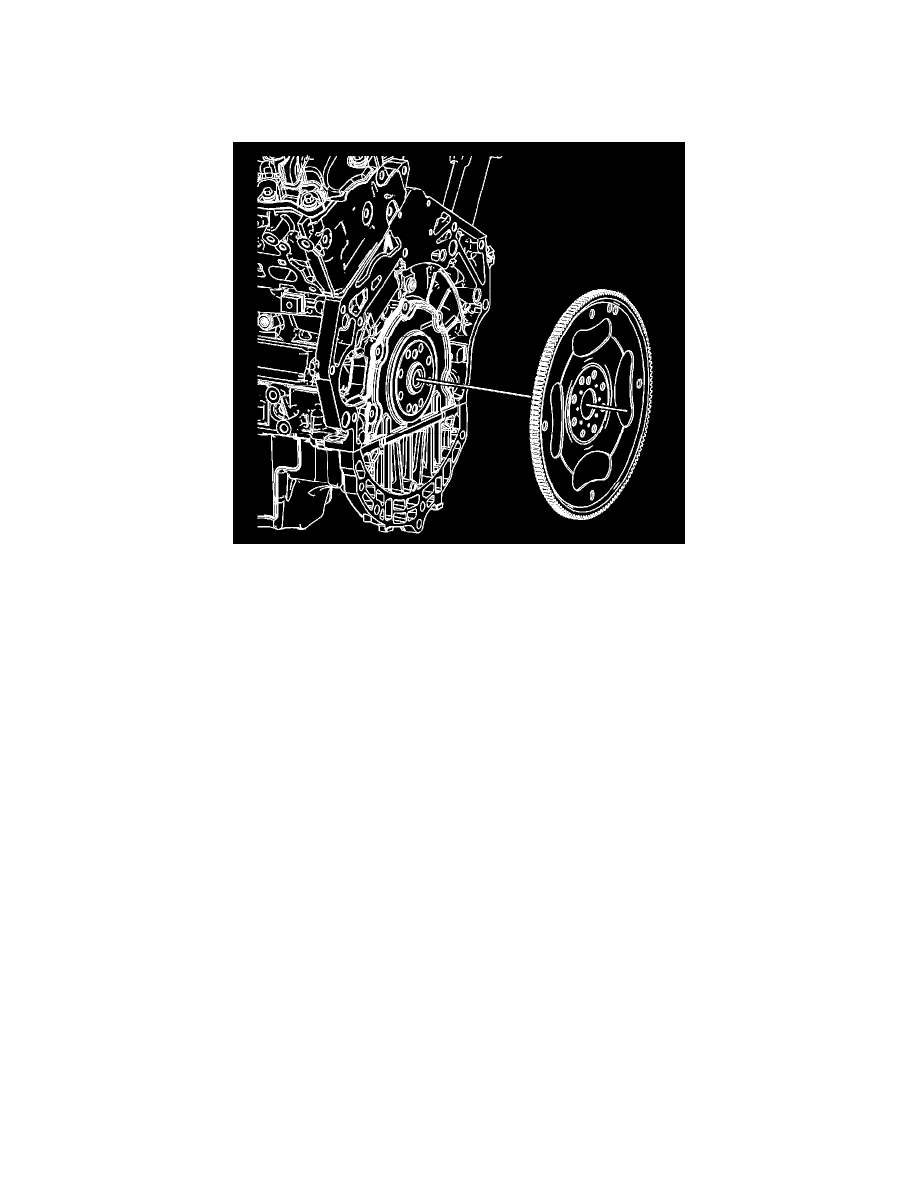

2. Remove the engine flywheel bolts and flywheel. Refer to Engine Flywheel Removal   (See: Engine, Cooling and Exhaust/Engine/Service and

Repair/Overhaul/12. Engine Flywheel Removal).

3. Clean and inspect the flywheel. Refer to Engine Flywheel Cleaning and Inspection   (See: Engine, Cooling and Exhaust/Engine/Service and

Repair/Overhaul/53. Engine Flywheel Cleaning and Inspection). If the flywheel teeth are damaged, inspect the starter for proper operation.
Replace the starter if you find excessive wear or damage to the starter drive. Refer to Starter Replacement   (See: Starting and Charging/Starting
System/Starter Motor/Service and Repair).

Installation Procedure
