Diagram Information and Instructions|Page 3396 > < Diagram Information and Instructions|Page 3394

Malibu V6-3.9L (2007)

Page 10
background image

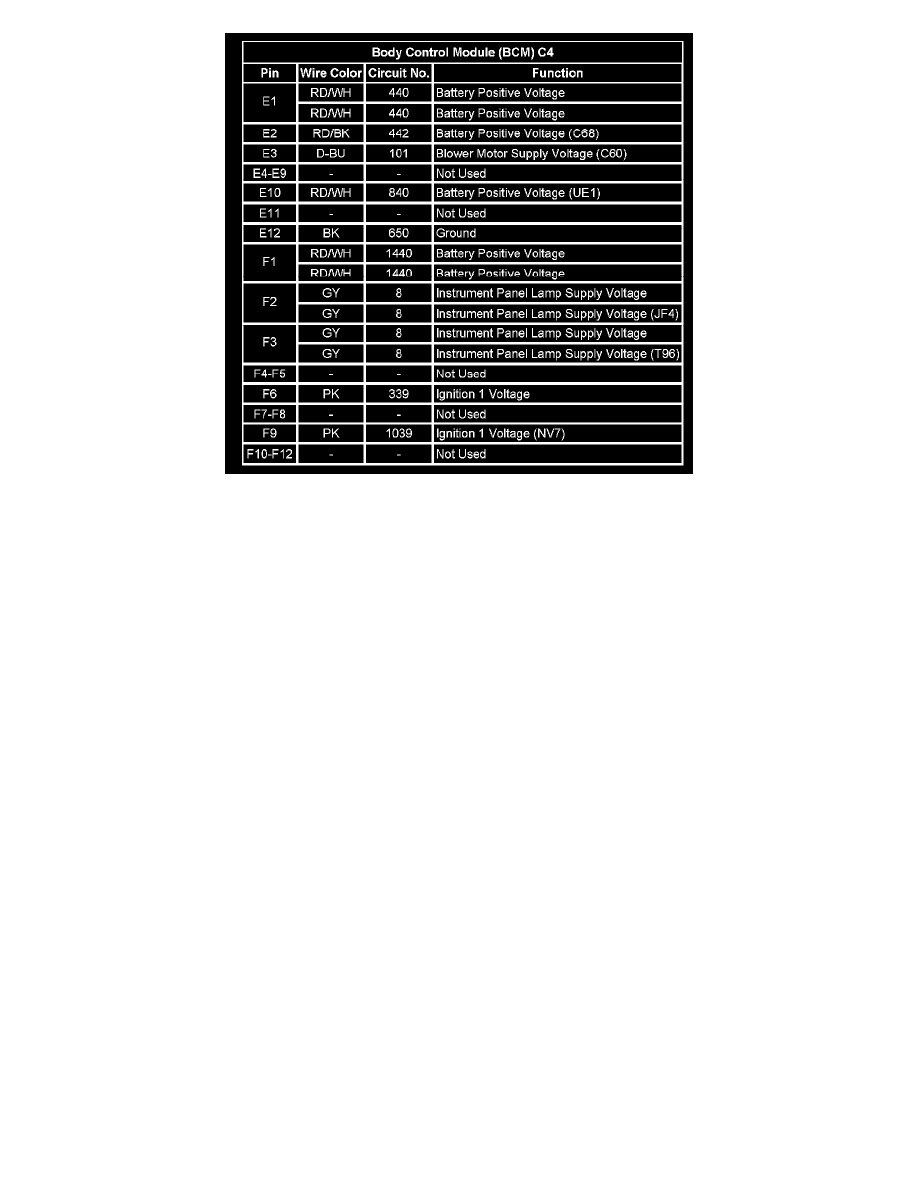

Body Control Module (BCM) C4 (Pin E1 To F12)

Rear Fuse Block

Electrical Center Identification Views

Fuse Block - Rear Top View

Diagram Information and Instructions|Page 3396 > < Diagram Information and Instructions|Page 3394
