S10/T10 Blazer 2WD V6-262 4.3L VIN W CPI (1992)

Page 1
background image

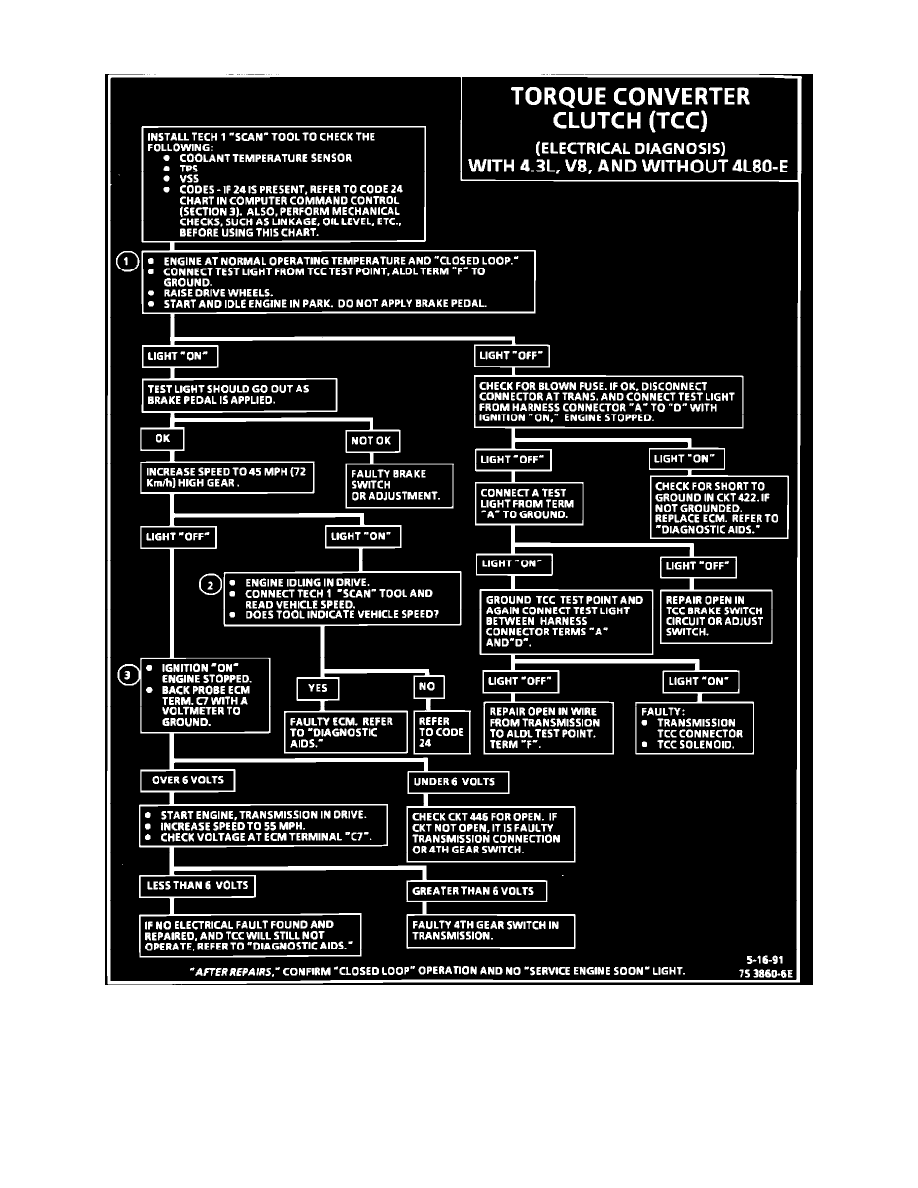

Torque Converter Clutch: Initial Inspection and Diagnostic Overview

Torque Converter Clutch (TCC) Circuit Check
