Silverado Classic 3500 4WD V8-6.6L DSL Turbo (2007)

Page 1
background image

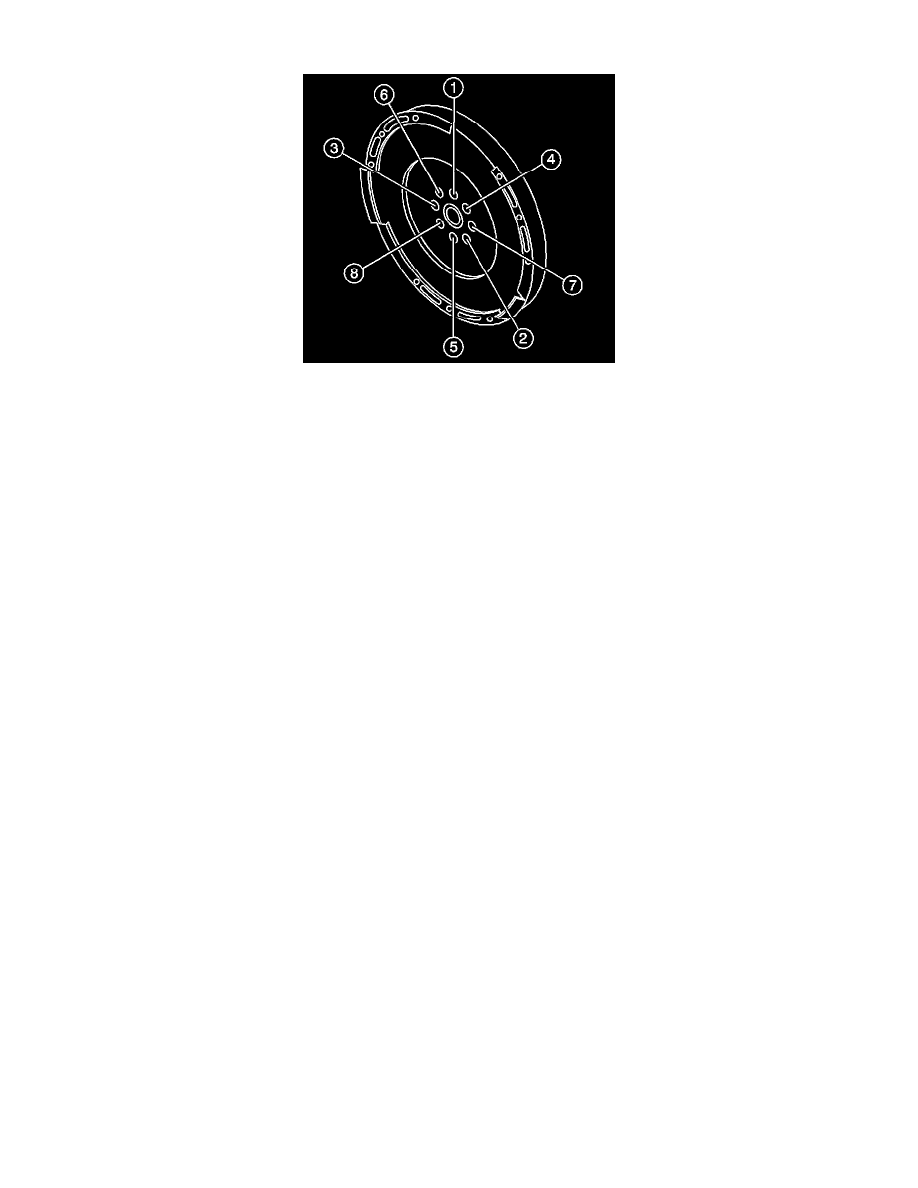

Flywheel: Specifications

Flywheel Bolt - Angular Tightening Method

1st Step ..................................................................................................................................................................................... 79 Nm (1st Step 58 ft. lbs.)
2nd Step ............................................................................................................................................................................................................. 60 degrees
2nd Step ............................................................................................................................................................................................................. 60 degrees
3rd Step .............................................................................................................................................................................................................. 60 degrees
3rd Step .............................................................................................................................................................................................................. 60 degrees
