Page 5

background image

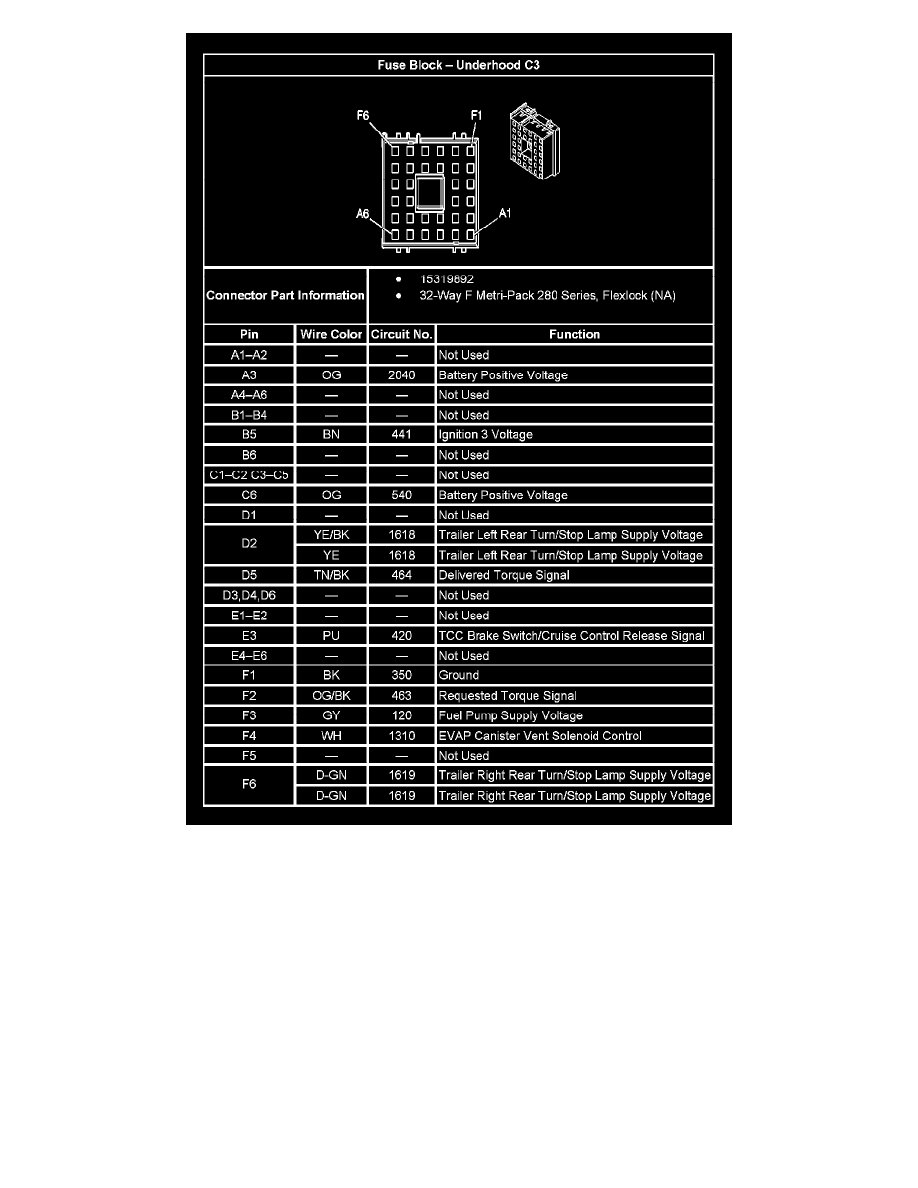

Fuse Block - Underhood C3

Maintenance
Fuses and Circuit Breakers
Fuse Block / Diagrams / Diagram Information and Instructions
Page 2101
