Dome Lamp: Diagrams

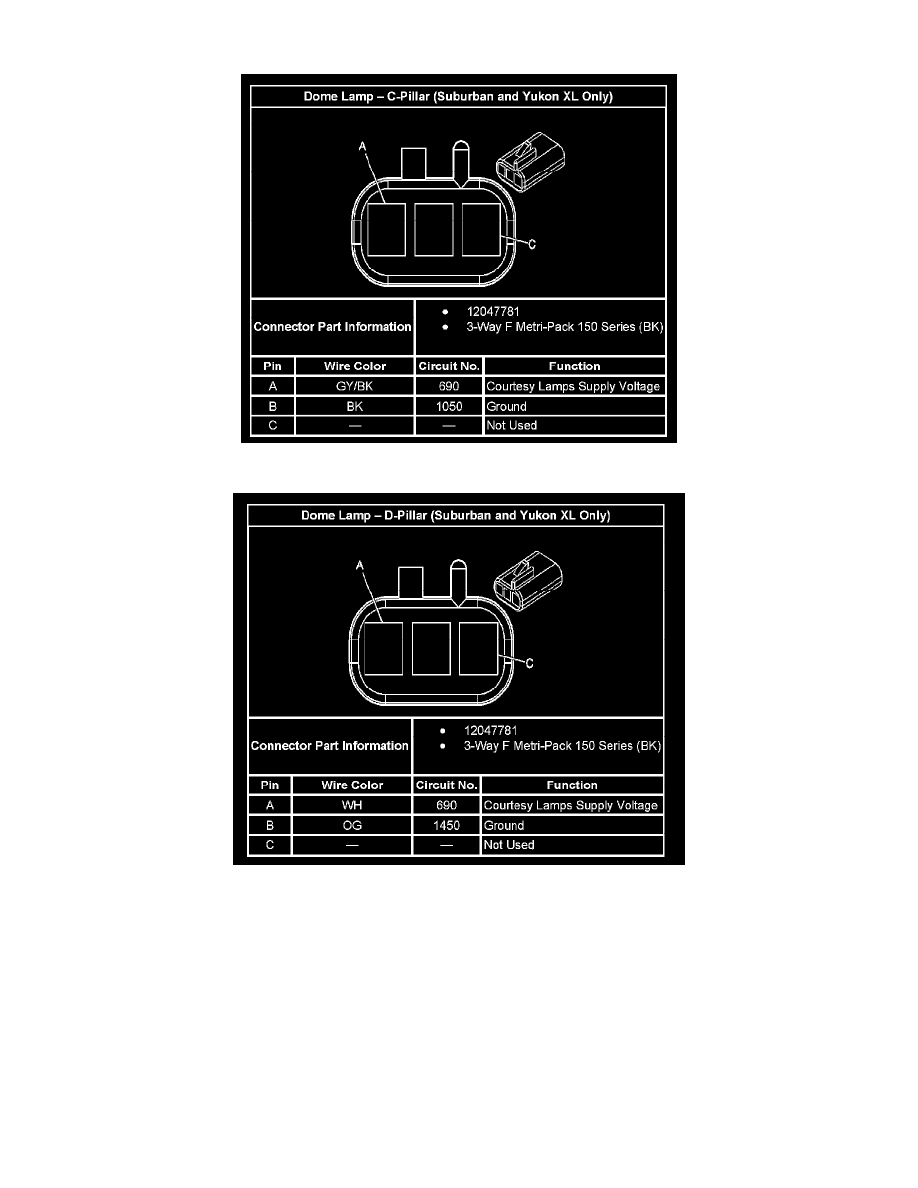

Dome Lamp - C-Pillar

Dome Lamp - D-Pillar

Lighting and Horns
Dome Lamp
Component Information
Diagrams
