Page 5

background image

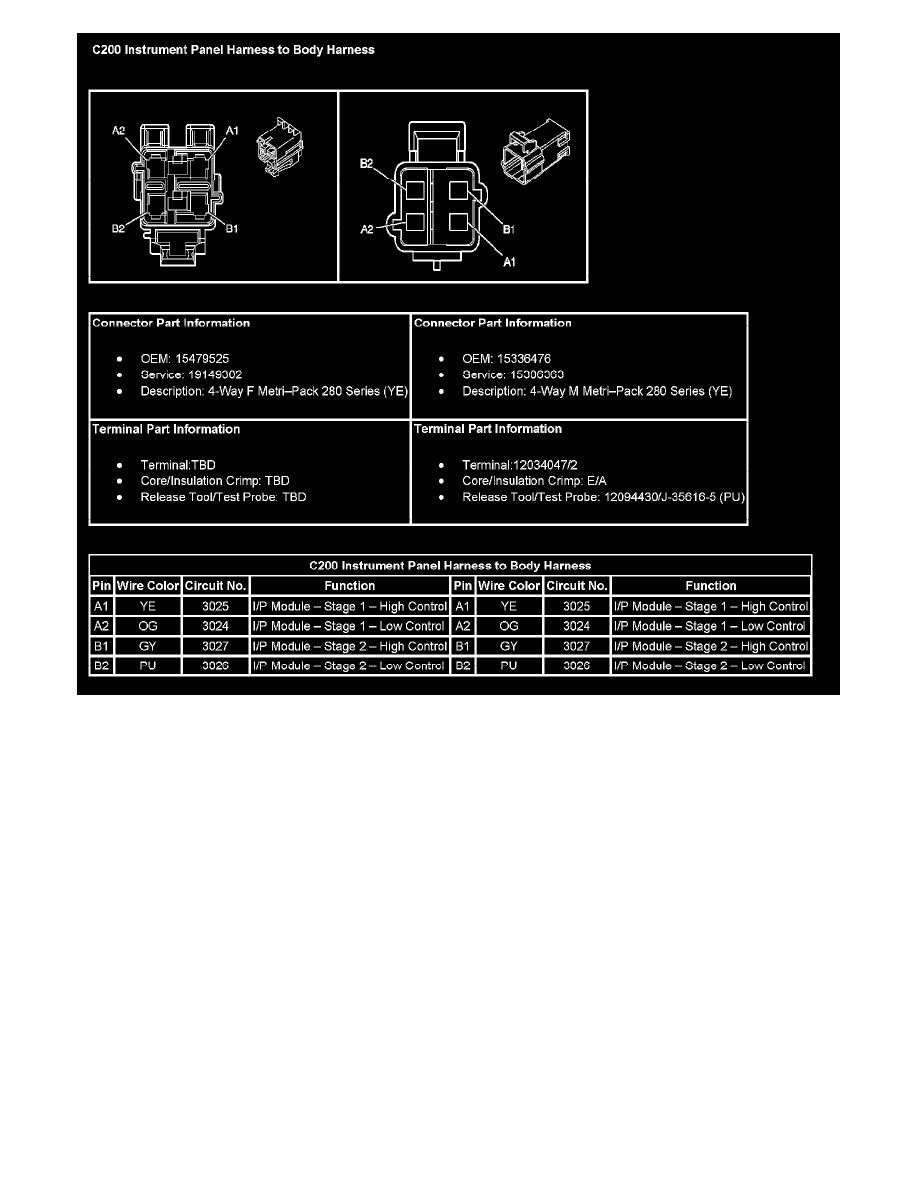

C200 Instrument Panel Harness To Body Harness

Power and Ground Distribution
Multiple Junction Connector / Component Information
Diagrams / C100 - C199
Page 15683
