Tahoe 2WD V8-6.0L Hybrid (2008)

Page 1
background image

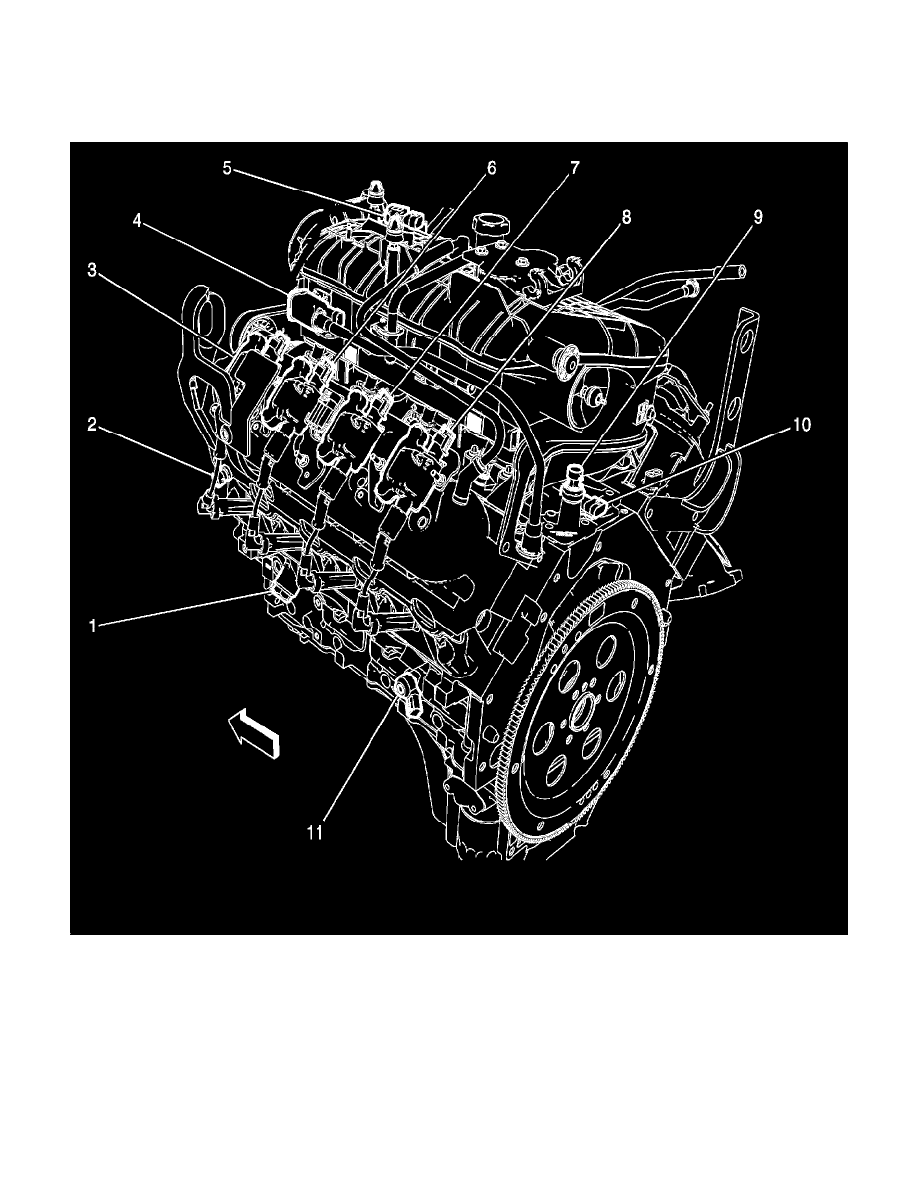

Coolant Temperature Sensor/Switch (For Computer): Locations

Powertrain Component Views

Engine-Left Rear (HP2)

1 - Engine Block Heater Connector
2 - Engine Coolant Temperature (ECT) Sensor
3 - Ignition Coil 1
4 - Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
5 - Manifold Absolute Pressure (MAP) Sensor
6 - Ignition Coil 3
7 - Ignition Coil 5
8 - Ignition Coil 7
9 - Engine Oil Pressure (EOP) Sensor
10 - Valve Lifter Oil Manifold (VLOM) Assembly (DOD)
11 - Knock sensor 1
