Tracker 2WD L4-2.0L VIN C (1999)
Starter Motor: Service and Repair
Starter Motor Overhaul
Disassembly Procedure
DISASSEMBLY PROCEDURE

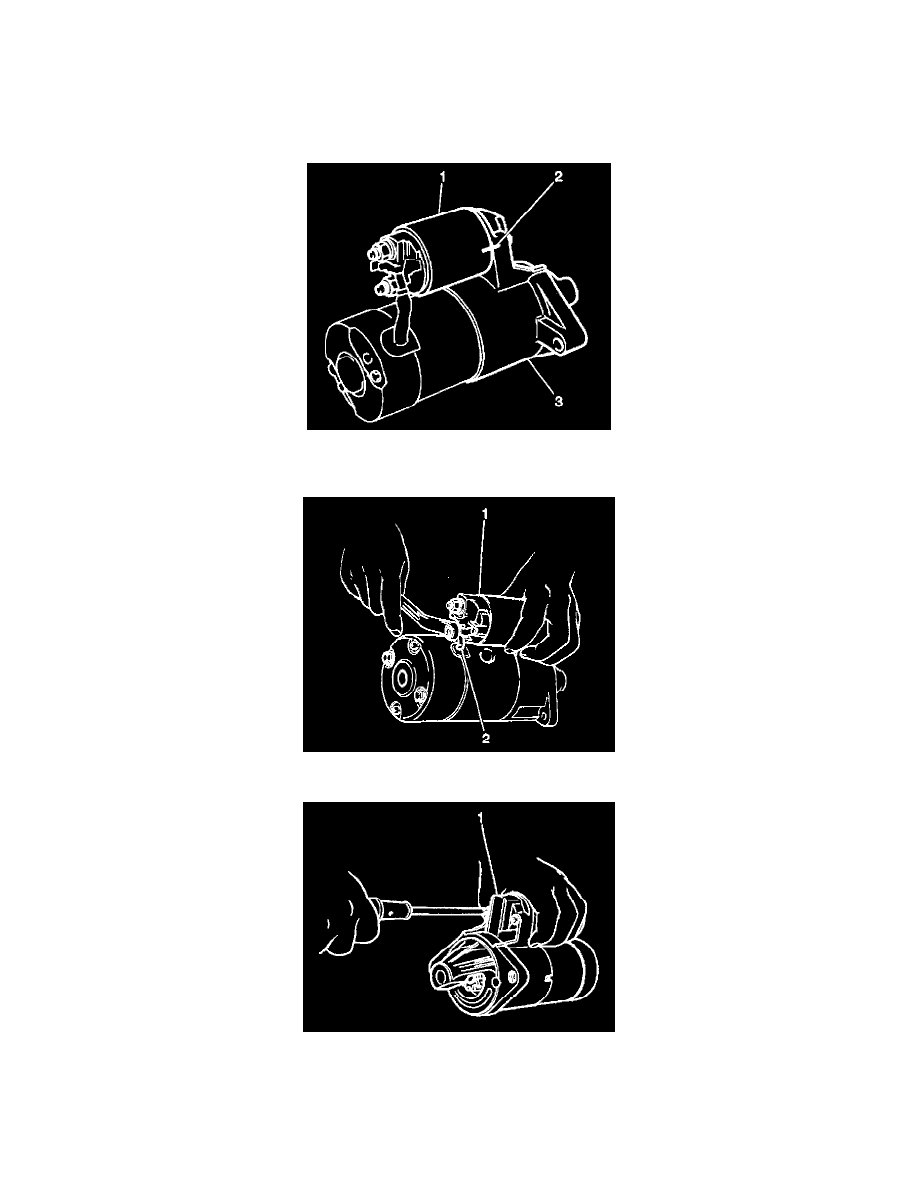

1. Remove the starter from the vehicle.
2. Scribe matchmarks (2) on the solenoid and the drive housing to ensure proper solenoid installation.
3. Remove the retaining nut and the field coil lead wire (2) from the solenoid.
4. Remove the 2 screws and the solenoid (1) from the drive housing.
