Tracker 4WD L4-2.0L VIN C (1999)
Notice: Refer to Fastener Notice in Service Precautions.

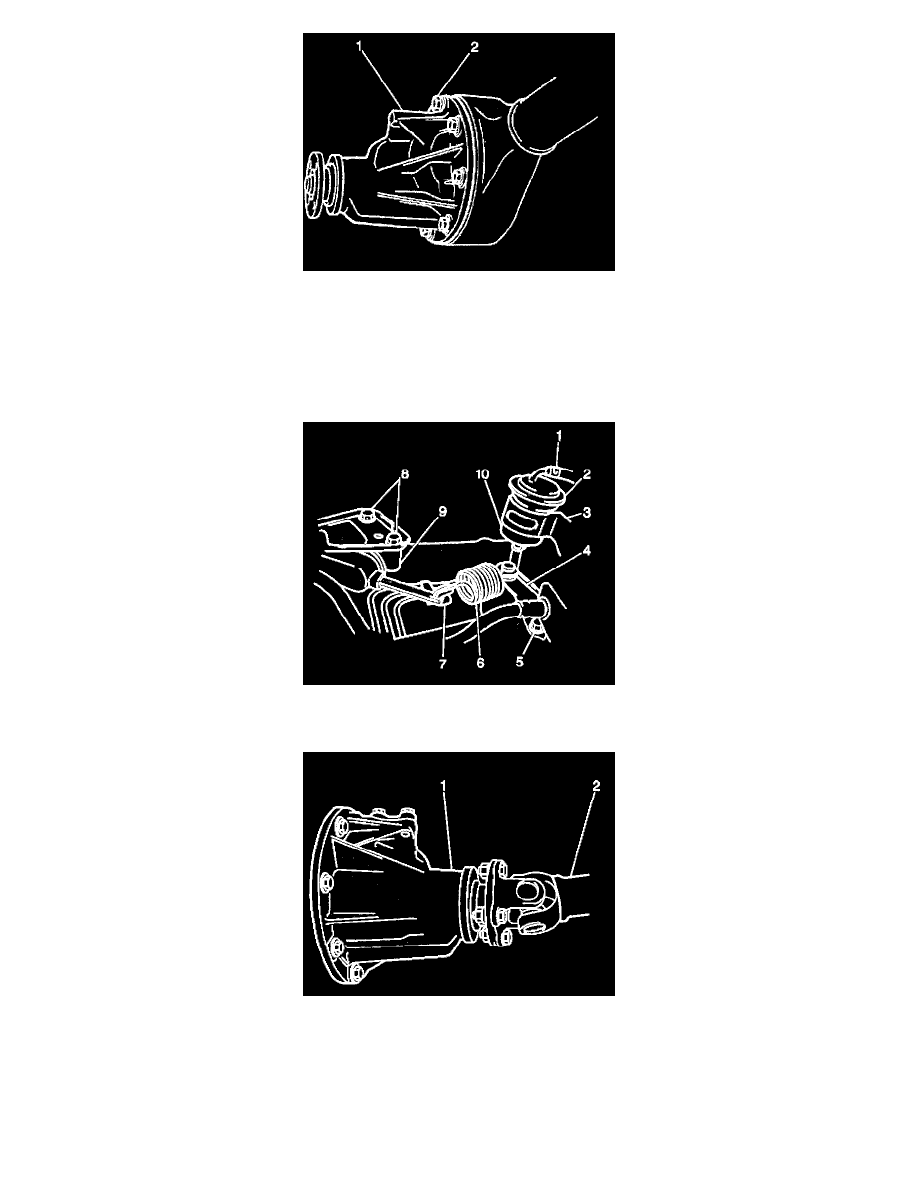

17. Install the differential carrier into the rear axle housing. Secure the differential carrier (1) with 8 nuts (2).
^
Tighten the differential carrier nuts to 55 Nm (41 ft. lbs.).
18. Install the rear control arms to the differential carrier.
19. Remove the hydraulic floor jack from under the rear axle housing.
20. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
21. If the vehicle does not have ABS, install the bolt (5) in order to secure the LSPV to the rear axle housing.
^
Tighten the bolt to 23 Nm (17 ft. lbs.).
Important: Use the index (reference) marks made in the removal procedure to ensure correct rear propeller shaft installation.
22. Install the rear propeller shaft (2) into the vehicle. Secure with 4 nuts, and bolts.
^
Tighten the rear propeller shaft nuts and bolts to 50 Nm (37 ft. lbs.).
23. Install both of the rear axle shaft inner oil seal protectors into the rear axle housing.
