Chevrolet Workshop Service and Repair Manuals > TrailBlazer 2WD V8-6.0L VIN H (2006) > Powertrain Management | Fuel Delivery and Air Induction | Fuel Injector | Component Information | Diagrams | Diagram Information and Instructions | Page 8409

Diagram Information and Instructions|Page 8410 > < Diagram Information and Instructions|Page 8408

Page 8

background image

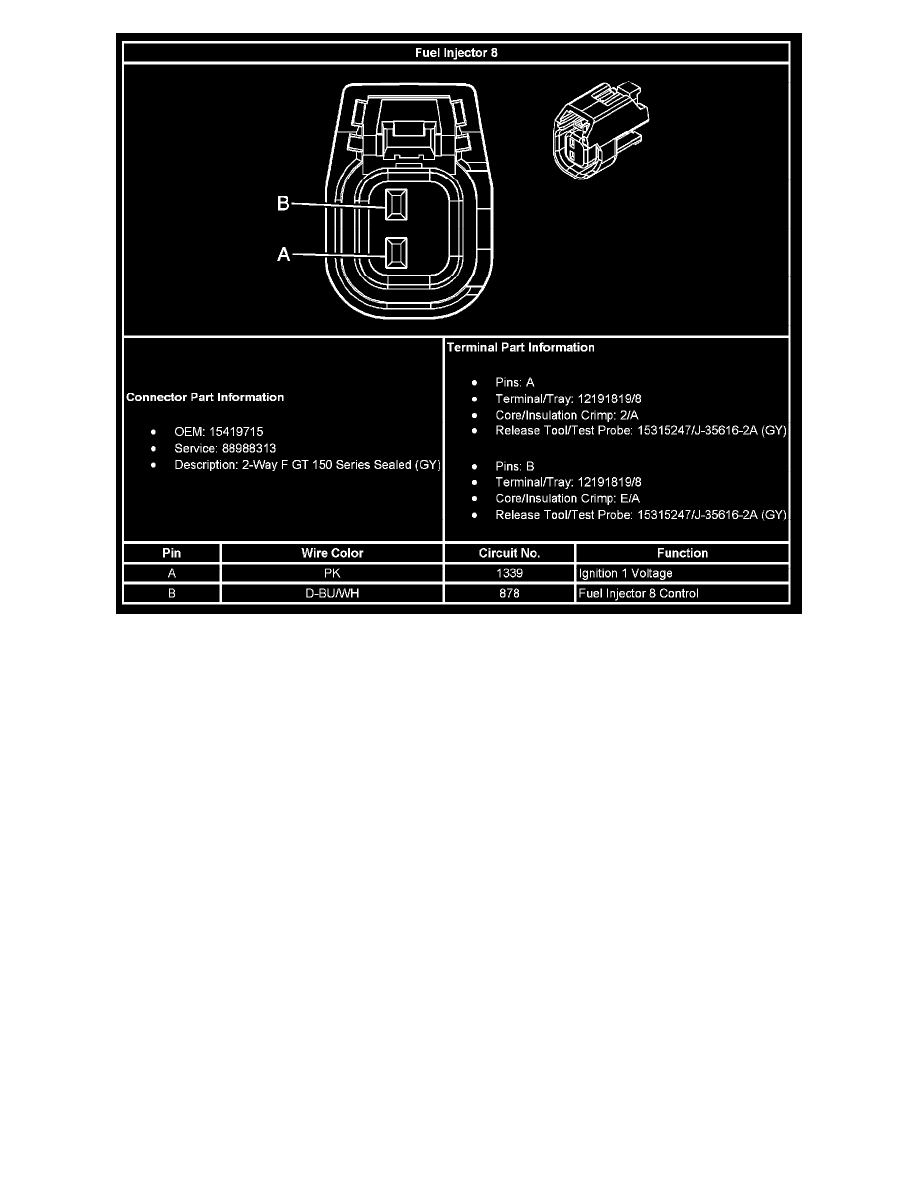

Fuel Injector 8

Powertrain Management
Fuel Delivery and Air Induction
Fuel Injector / Component Information
Diagrams / Diagram Information and Instructions
Page 8409

Diagram Information and Instructions|Page 8410 > < Diagram Information and Instructions|Page 8408
