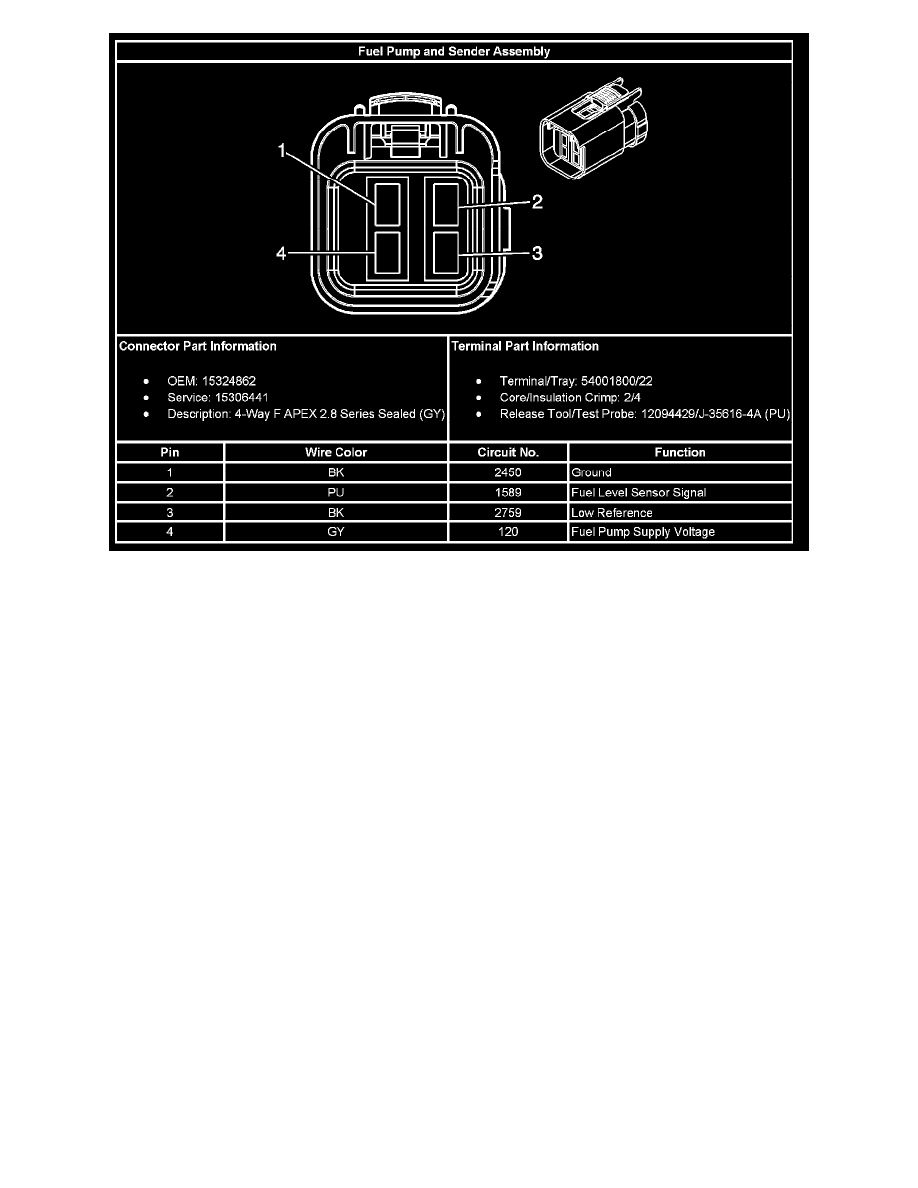

Fuel Pump And Sender Assembly

Powertrain Management
Fuel Delivery and Air Induction
Fuel Tank Unit
Component Information
Diagrams
