Chevrolet Workshop Service and Repair Manuals > TrailBlazer 2WD V8-6.0L VIN H (2006) > Powertrain Management | Fuel Delivery and Air Induction | Throttle Body | Component Information | Diagrams

Throttle Body|Diagrams|Page 8853 > < Diagram Information and Instructions|Page 8849

Page 1

background image

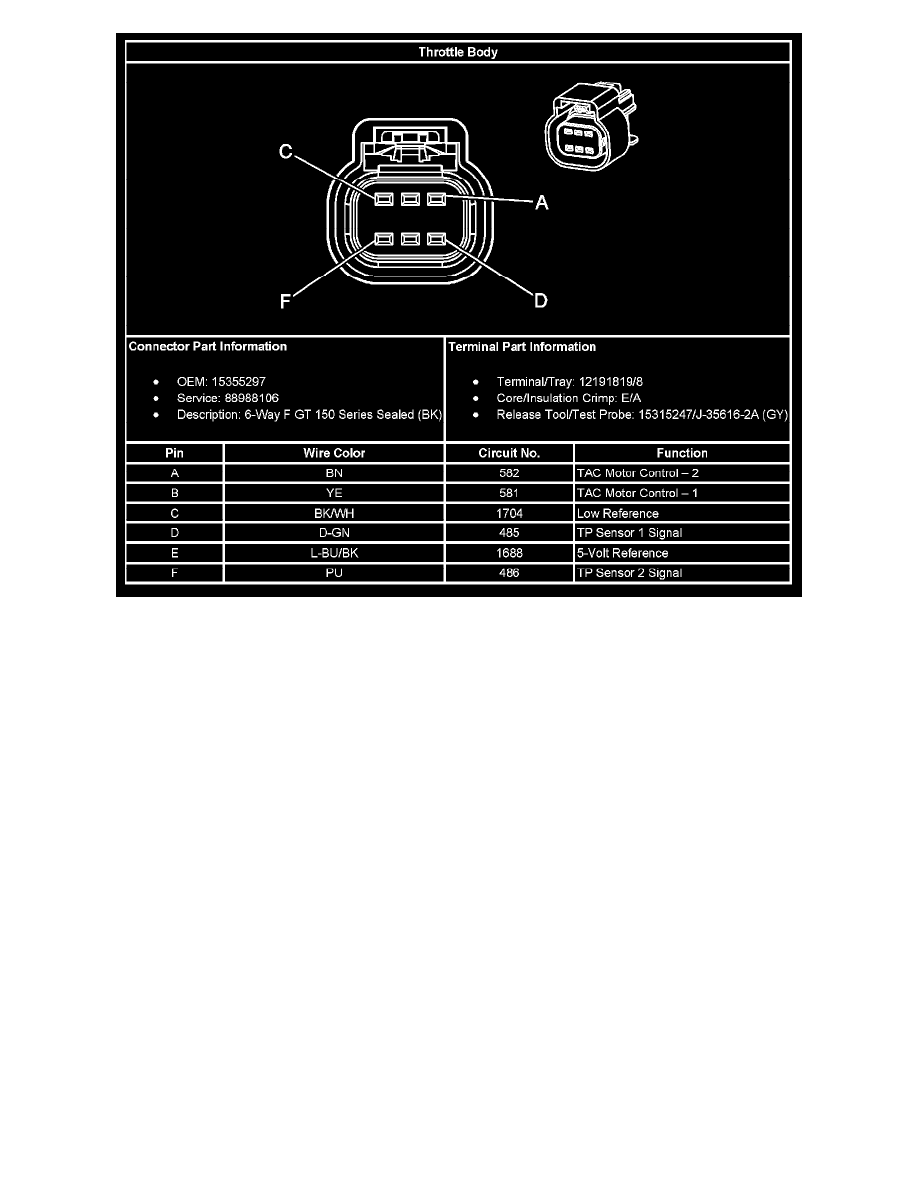

Throttle Body

Powertrain Management
Fuel Delivery and Air Induction
Throttle Body
Component Information
Diagrams

Throttle Body|Diagrams|Page 8853 > < Diagram Information and Instructions|Page 8849
