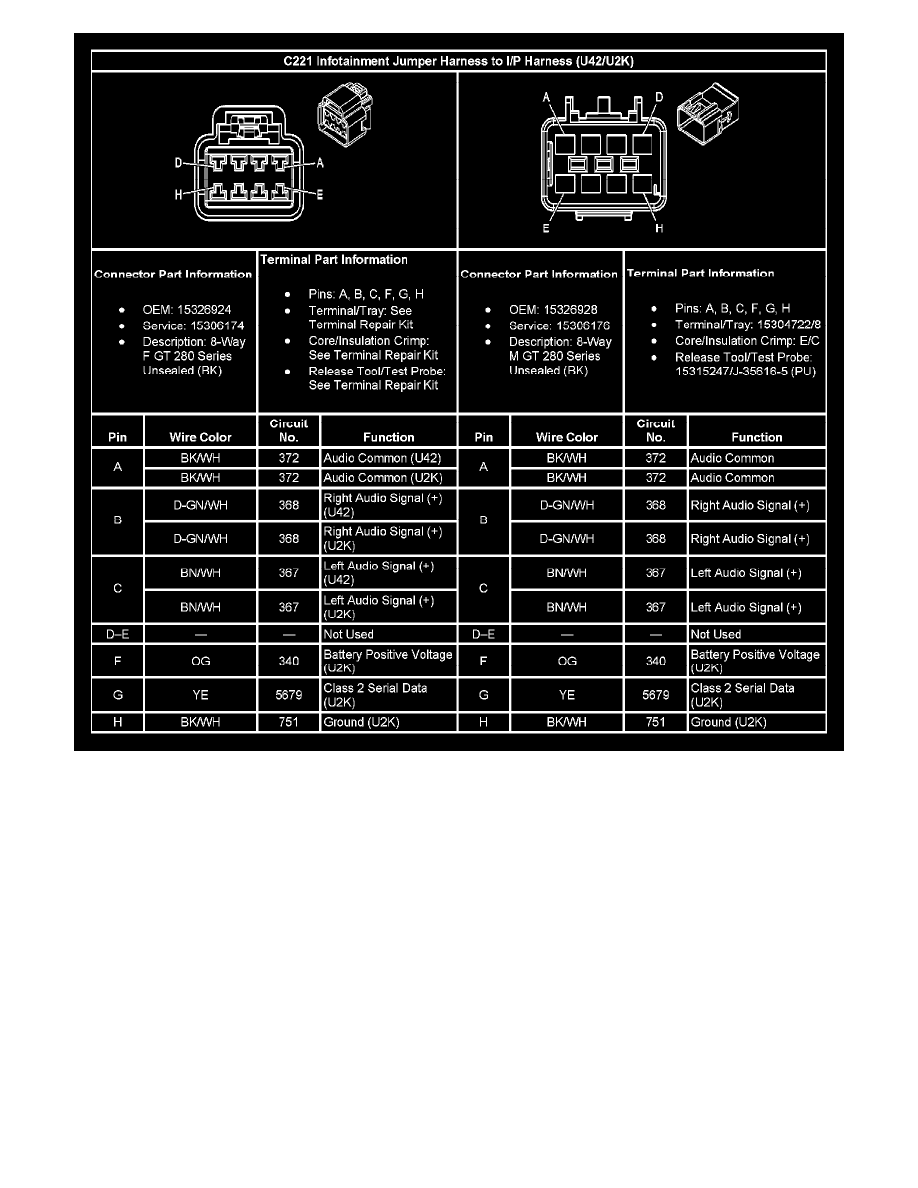

C221 Infotainment Jumper Harness To I/P Harness (With RPO Code U42/U2K)

Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Component Information
Diagrams / C100 - C199
