Aspen 2WD V8-5.7L (2007)

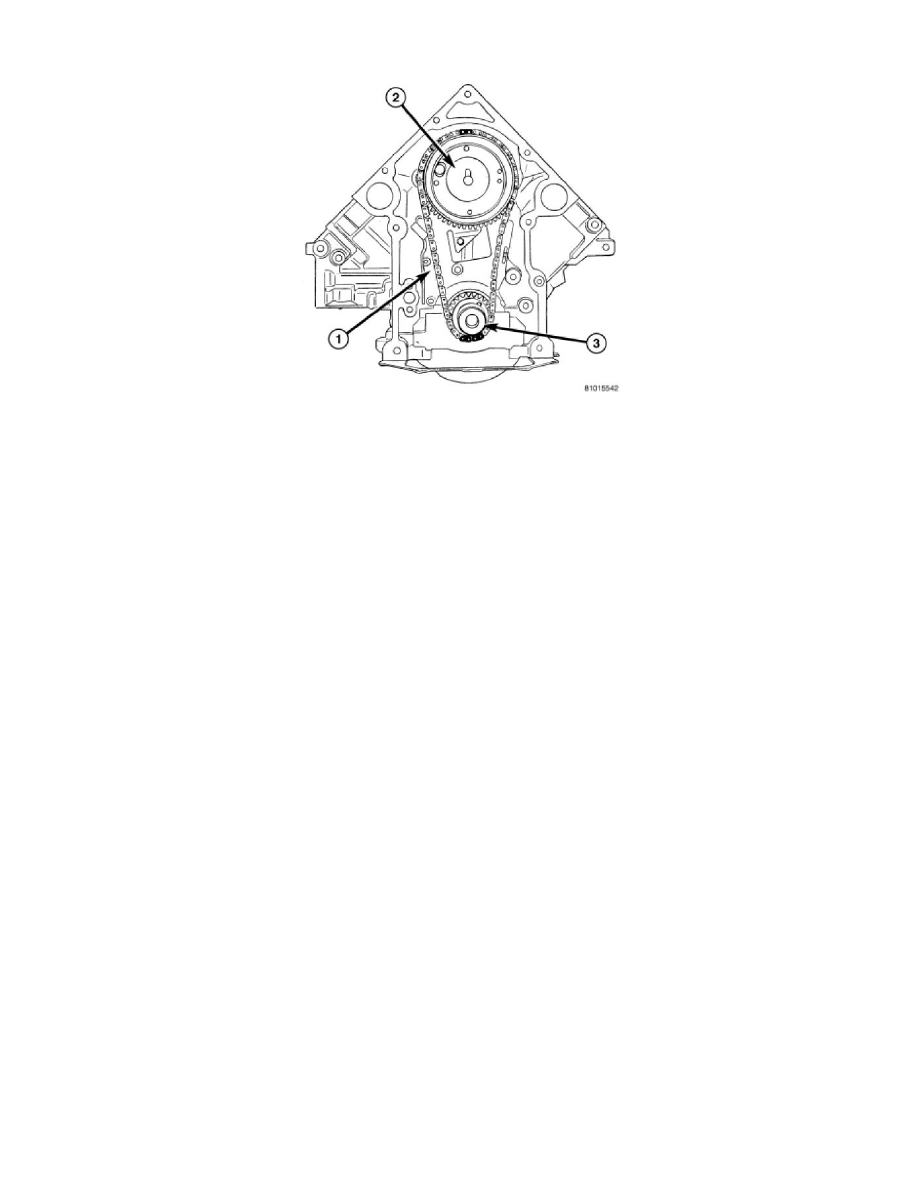

Timing Component Alignment Marks: Locations
CAUTION: The timing chain must be installed with the single plated link aligned with the dot and or paint marking on the camshaft
sprocket. The crankshaft sprocket is aligned with the dot and or paint marking on the sprocket between two plated timing chain links.
CAUTION: The camshaft pin and the slot in the cam sprocket must be clocked at 12:00. The crankshaft keyway must be clocked at 2:00.
The crankshaft sprocket must be installed so that the dots and or paint marking is at 6:00.
