Concorde V6-3.2L VIN J (2000)
Controller Antilock Brake: Service and Repair
Disassembly and Assembly
REMOVAL
NOTE: To replace the Hydraulic Control Unit (HCU) or the Controller Antilock Brake (CAB) on this vehicle, the entire Integrated Control Unit (ICU)
needs to be removed from the vehicle. The CAB can then be separated from the HCU. Do not attempt to replace the CAB with the ICU mounted in the
vehicle.
1. Remove the ICU from the vehicle.

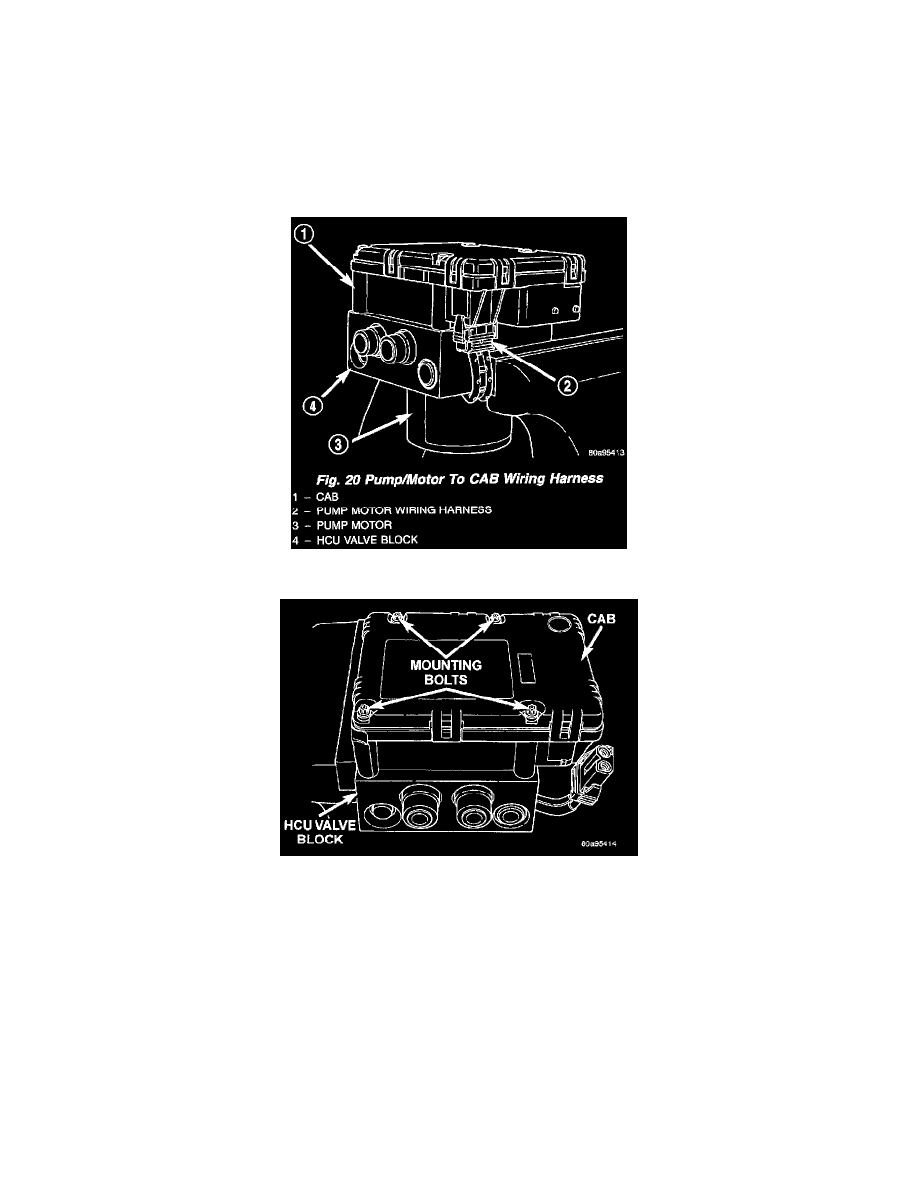

2. Disconnect the pump/motor wiring harness from the CAB.
CAB Attaching Bolts
3. Remove the 4 bolts attaching the CAB to the HCU.
