Concorde V6-3.5L VIN F (1994)
Front Door Latch: Service and Repair

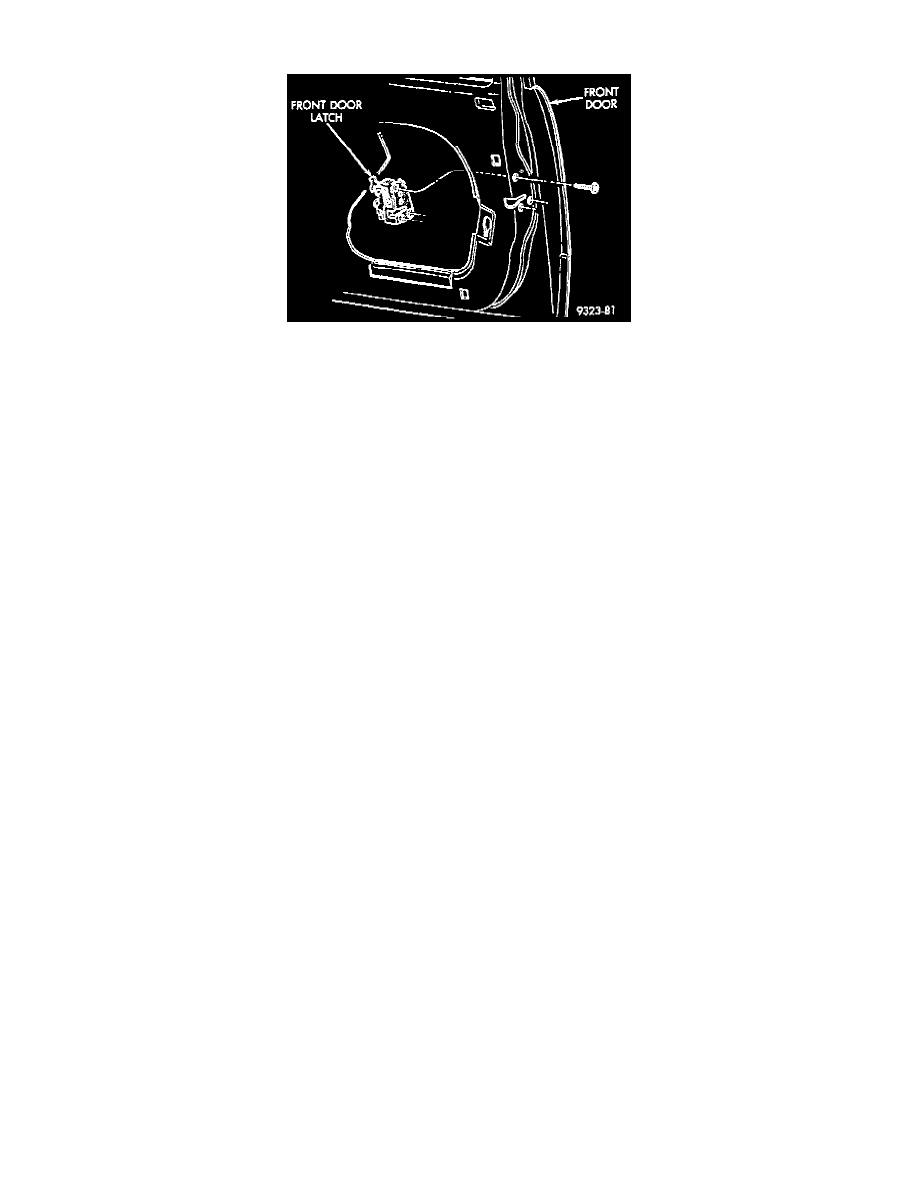

FRONT DOOR LATCH REMOVAL
1. Close door glass.
2. Remove door trim panel.
3. Disconnect lock button link from door latch.
4. Disconnect lock cylinder link from door latch.
5. Disconnect outside door handle link from door latch.
6. Remove screws holding door latch to door end frame.
7. Separate latch from door.
INSTALLATION
1. Place latch in position in door.
2. Install screws to hold door latch to door end frame.
3. Connect outside door handle link to door latch.
4. Connect lock cylinder link to door latch.
5. Connect lock button link to door latch.
6. Verify latch operation.
7. Install door trim panel.
