Concorde V6-3.5L VIN F (1994)
Catalytic Converter: Component Tests and General Diagnostics
With Backpressure Gauge

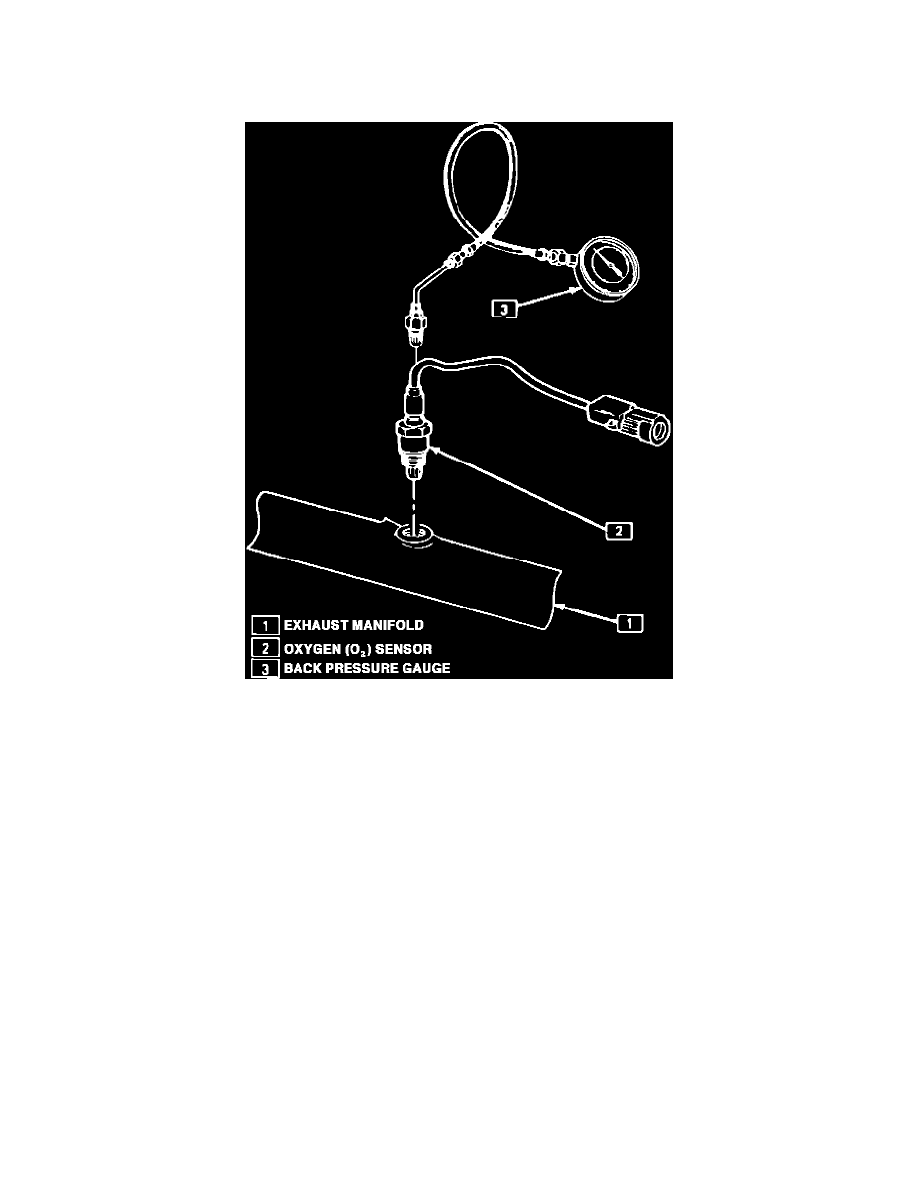

Pressure Testing The Exhaust System at The Oxygen Sensor
NOTE: A partially restricted or blocked exhaust system usually results in a loss of power or backfire up through the throttle body. Verify that the
condition is not caused by ignition or fuel system problems, then perform a visual inspection of the exhaust system. If the condition cannot be located by
visual inspection, perform the following procedure.
Check at Oxygen Sensor
1. Carefully remove O2 sensor with proper removal tool.
2. Install Exhaust Backpressure Tester in place of 02 sensor.
3. With the engine at normal operating temperature and running at 2500 rpm, observe the exhaust system backpressure reading on the gauge.
4. If the backpressure exceeds 1.25 psi (8.62 kPa), a restricted exhaust system is indicated.
5. Inspect the entire exhaust system for a collapsed pipe, heat distress, or possible internal muffler failure.
6. If there are no obvious reasons for the excessive backpressure, a restricted catalytic converter should be suspected, and replaced.
7. Coat threads of 02 sensor with antiseize compound and install.
With Vacuum Gauge
NOTE: A partially restricted or blocked exhaust system usually results in a loss of power or backfire up through the throttle body. Verify that the
condition is not caused by ignition or fuel system problems, then perform a visual inspection of the exhaust system. If the condition cannot be located by
visual inspection, perform the following procedure.
1. Attach a vacuum gauge to the intake manifold.
2. Connect a tachometer to the ignition coil negative (TACH) terminal.
3. Start the engine and observe the vacuum gauge. The gauge should indicate a vacuum of 16-21 inches Hg.
4. Increase the engine speed to 2,000 rpm and observe the vacuum gauge. The vacuum will decrease when the speed is increased rapidly, but should
stabilize at 16-21 inches Hg and remain constant. If the vacuum remains below 16 inches Hg, the exhaust system is restricted or blocked. Stop the
