Heater Core: Service and Repair

NOTE:  The unit housing must be removed from the vehicle to service the heater core. For procedure Refer to Housing Assembly HVAC/Service
and Repair/HVAC Housing Removal and Installation.  See: Housing Assembly HVAC/Service and Repair/Heater-A/C Housing Removal and
Installation

REMOVAL

1. Disconnect battery.

2. Remove unit housing from vehicle. For procedure Refer to Housing Assembly HVAC/Service and Repair/HVAC Housing Removal and

Installation.  See: Housing Assembly HVAC/Service and Repair/Heater-A/C Housing Removal and Installation

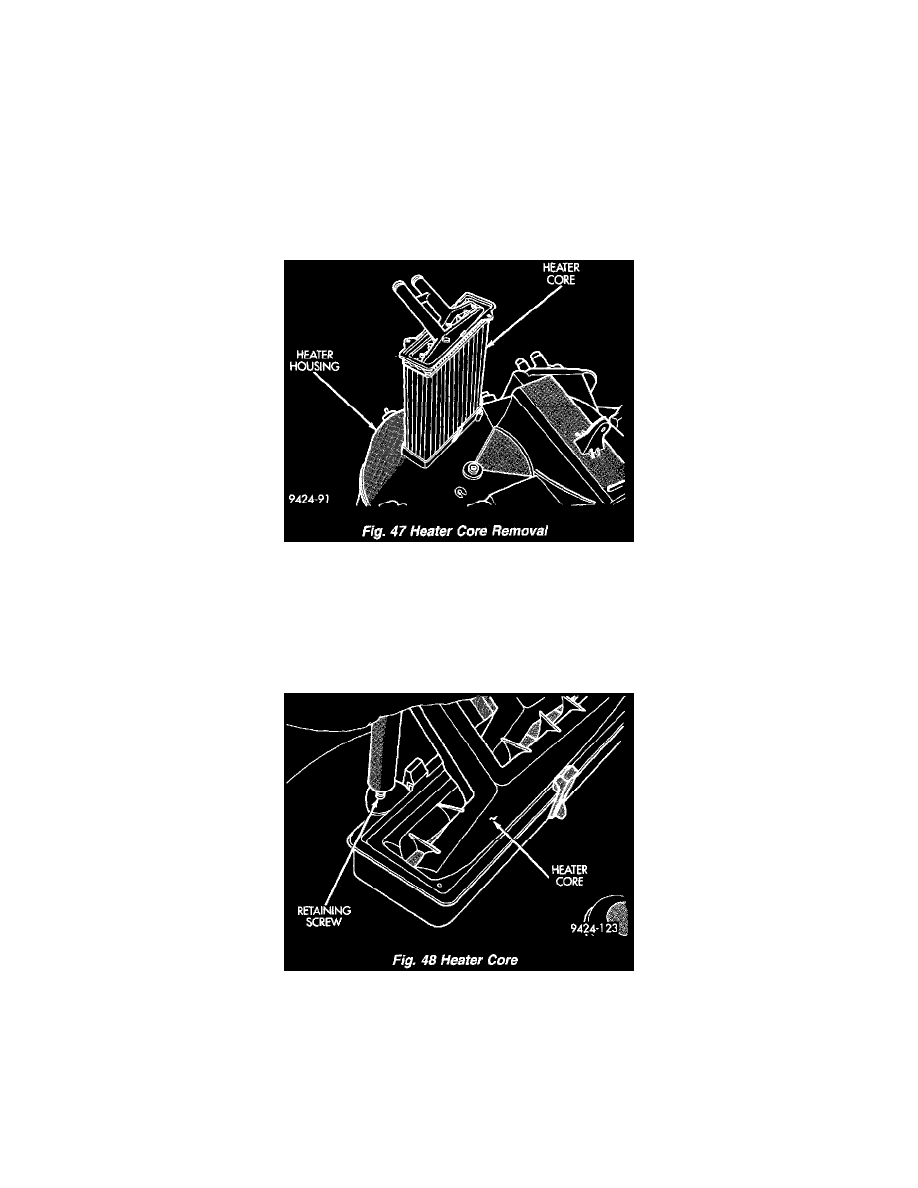

Heater Core Removal

3. With the unit housing out of the vehicle, pull back heater core retaining clips. Then pull the heater core out of the heater housing.

INSTALLATION

1. Push new heater core into the unit housing.

Heater Core

2. Fasten heater core to unit housing with screws provided with new heater core.

3. Install unit housing into vehicle.

4. Reconnect battery.
