Solar Sensor: Locations

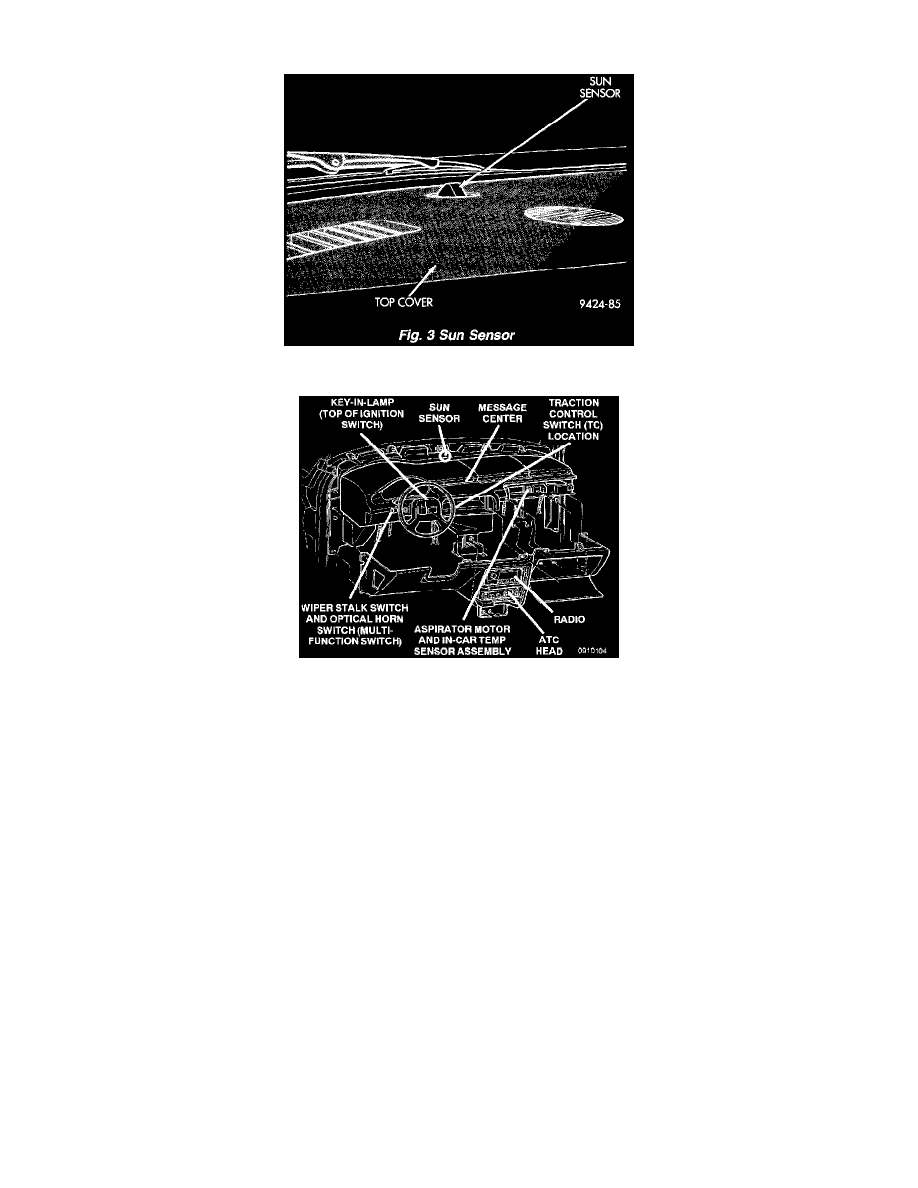

Sun Sensor

Automatic Temperature Control (ATC) System Component Locations

The sun load sensor is located on the top of the instrument panel, below the instrument panel top cover.
