Concorde V6-3.5L VIN F (1994)
Brake Light Switch: Technical Service Bulletins
Stop Light Switch - Wiring Connector Service
NO.: 08-67-93
GROUP: Electrical
DATE: Dec. 31, 1993
SUBJECT:
Stop Light Switch Wiring Connector Service
MODELS:
1995
(PL)
Neon
1994
(AA)
Spirit/Acclaim/LeBaron Sedan
1994
(AJ)
LeBaron Convertible
1994
(AP)
Shadow/Sundance
1994
(AS)
Caravan/Voyager/Town & Country
1994
(BR)
Ram Pickup
1994
(LH)
Concorde/Intrepid/Vision
1994
(LH)
LHS/New Yorker
1994
(ZJ)
Grand Cherokee
SYMPTOM/CONDITION:
When servicing the stop light switch or wiring connector, the stop light switch wiring connector may be difficult to remove from stop light switch.
Attempts to remove the wiring connector may damage the insulator wedge or the switch itself.
REPAIR PROCEDURE:
This bulletin involves removing the stop light switch with wiring connector attached as an assembly before disconnecting the wiring connector.
1.
Remove the stop light switch, with wiring connector still attached to the switch, by turning the switch counterclockwise 1/16 turn and pulling
straight out of the mounting bracket.
2.

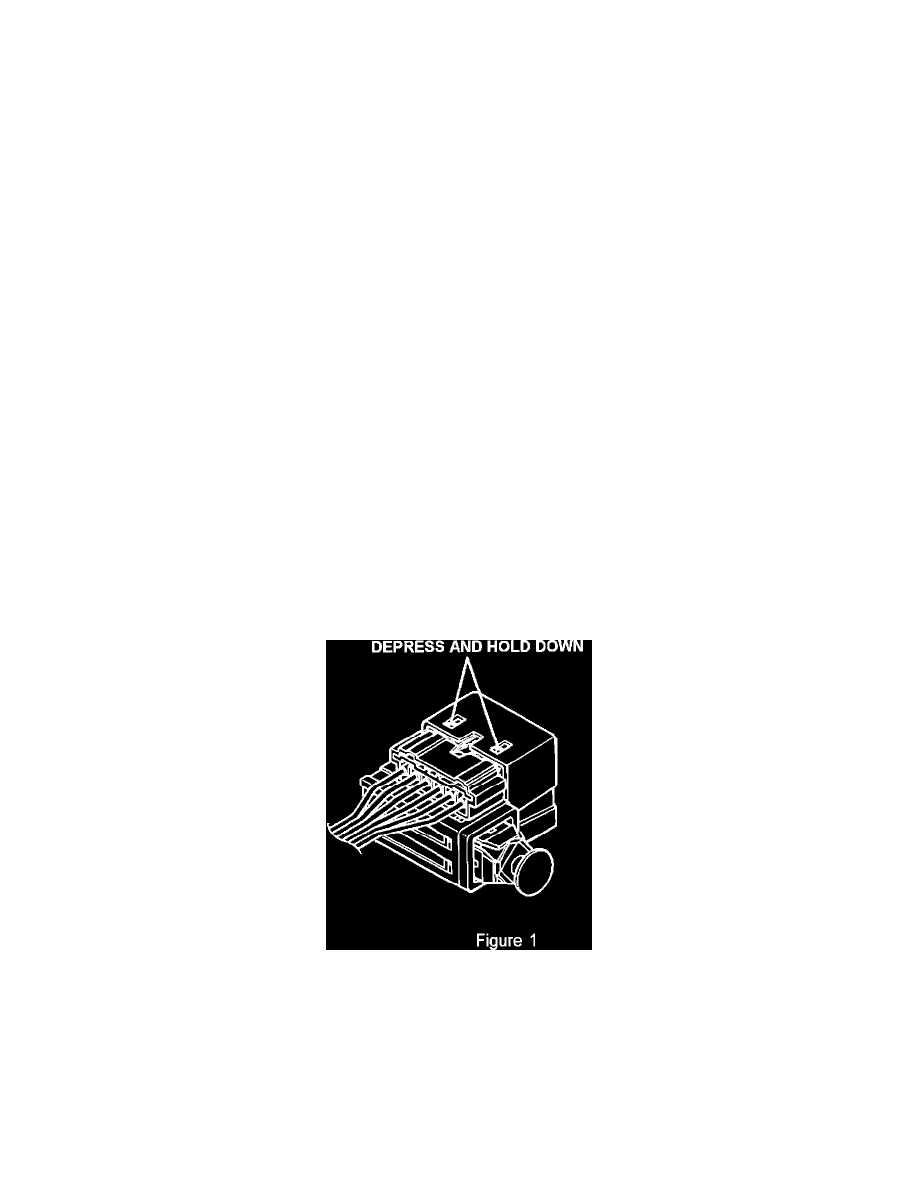

Depress and hold down both locking tabs on the "blue" wiring insulator wedge and pull the wiring connector from the stop light switch insulator,
Figure 1.
NOTE:
DISCONNECTING THE WIRING CONNECTOR HARNESS FROM THE SWITCH BY PULLING ON THE WIRING MAY RESULT IN OPEN
CIRCUITS.
