Electrical Accessory Panel: Diagram Information and Instructions

Circuit Information

Wire Code Identification

Wire Color Code Chart

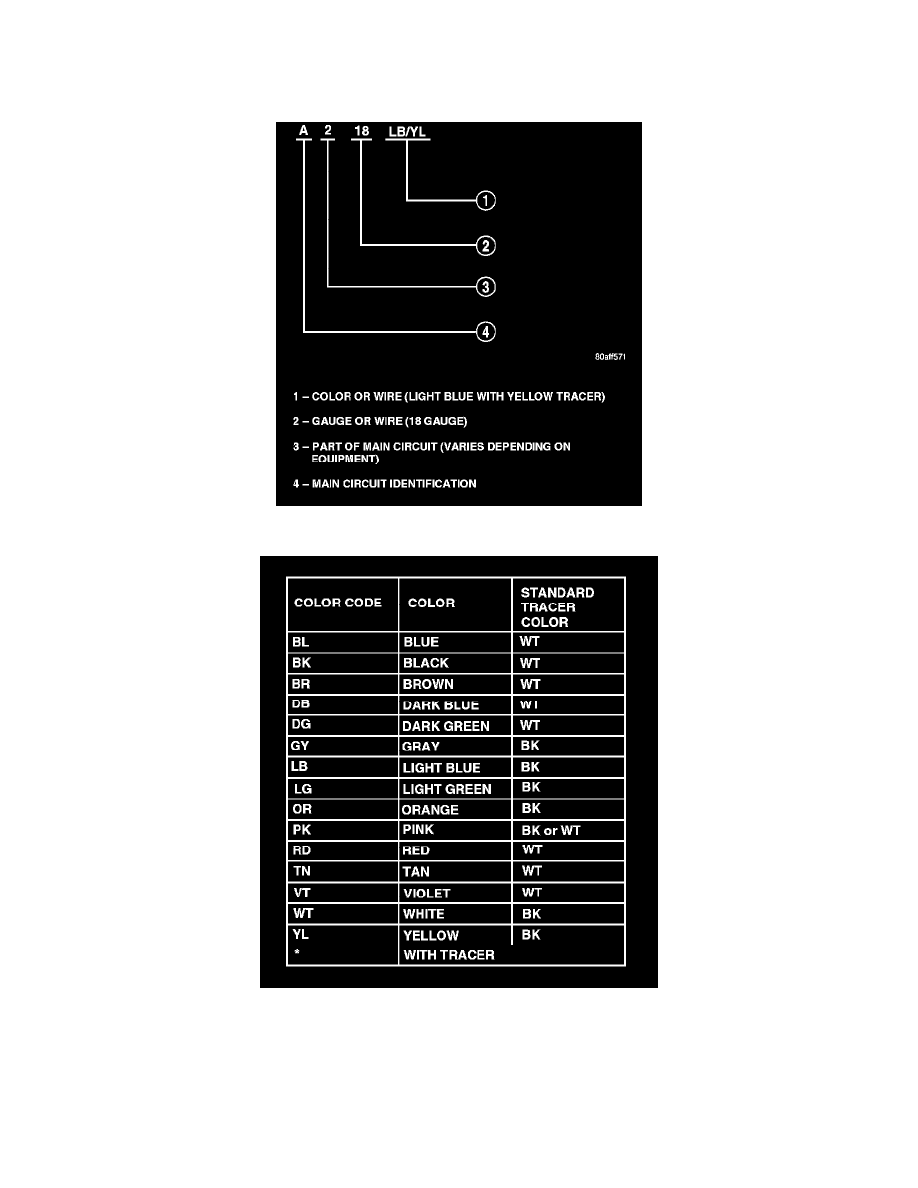

Each wire shown in the diagrams contains a code which identifies the main circuit, part of the main circuit, gauge of wire, and color.

Connector Information
