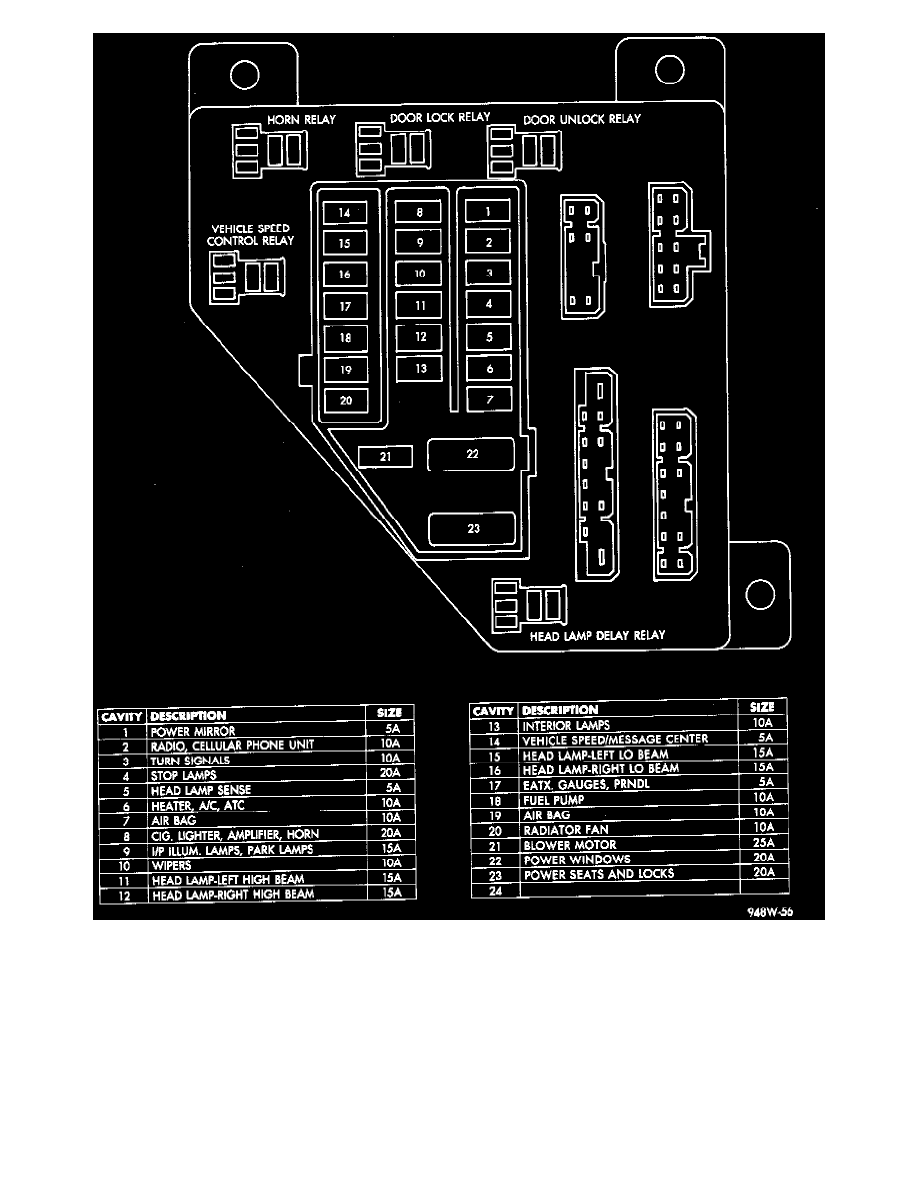

Junction Block Identification

Relays and Modules
Relays and Modules - Power and Ground Distribution / Relay Box / Component Information
Diagrams / Diagram Information and Instructions
Page 170
