Concorde V6-3.5L VIN F (1994)

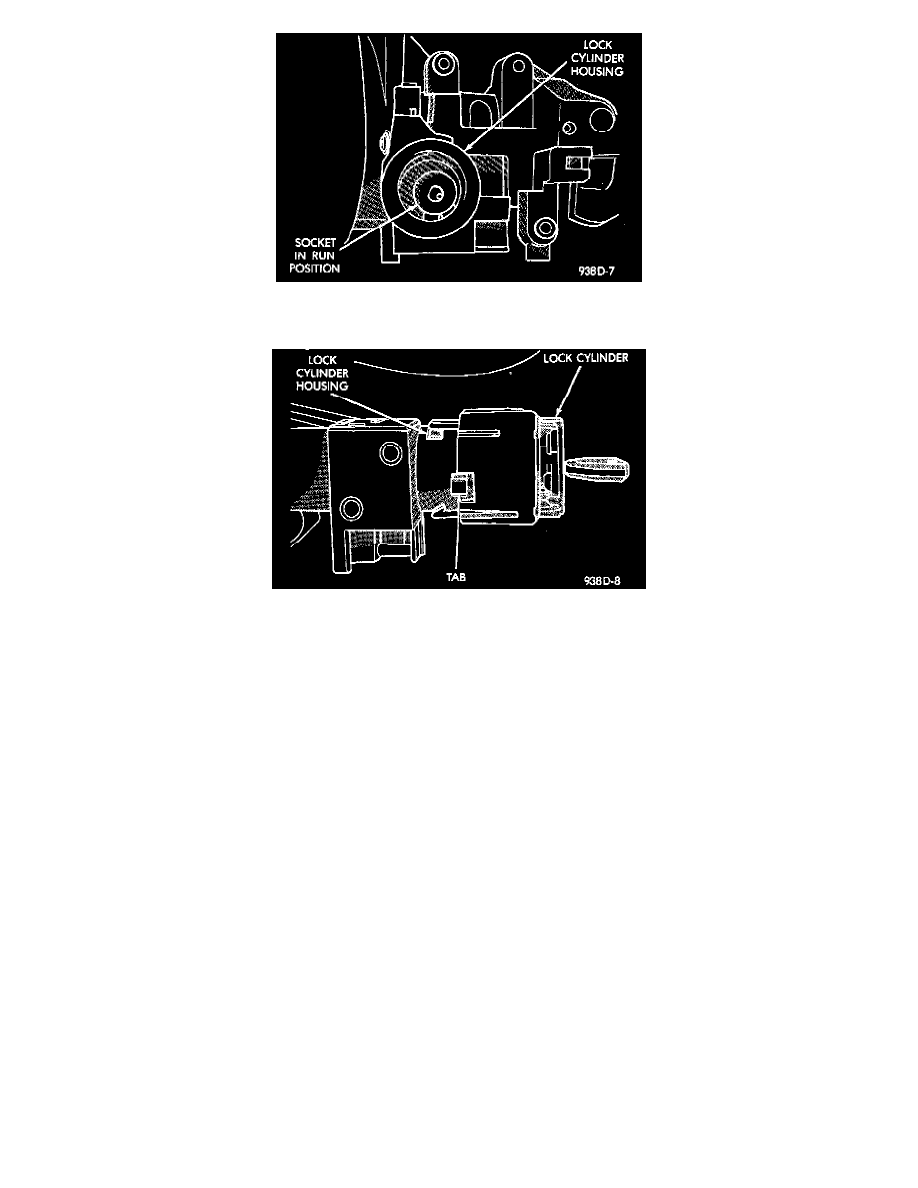

2. The shaft at the end of the lock cylinder aligns with the socket in the end of the housing. To align the socket with the lock cylinder, ensure the
socket is in the Run position
3. Align the lock cylinder with the grooves in the housing. Slide the lock cylinder into the housing until the tab sticks through the opening in the
housing
4. Turn key to Off position. Remove key.
5. If the vehicle has column shift and a new lock cylinder was used, install and adjust a new interlock cassette. Refer to Ignition Interlock in this
section. If the vehicle has a floor shift, adjust the interlock cable when the lock cylinder is replaced.
6. Install upper and lower cover on steering column.
7. Install tilt lever.
8. Connect negative cable to battery.
