Concorde V6-3.5L VIN F (1994)
Wire Repair

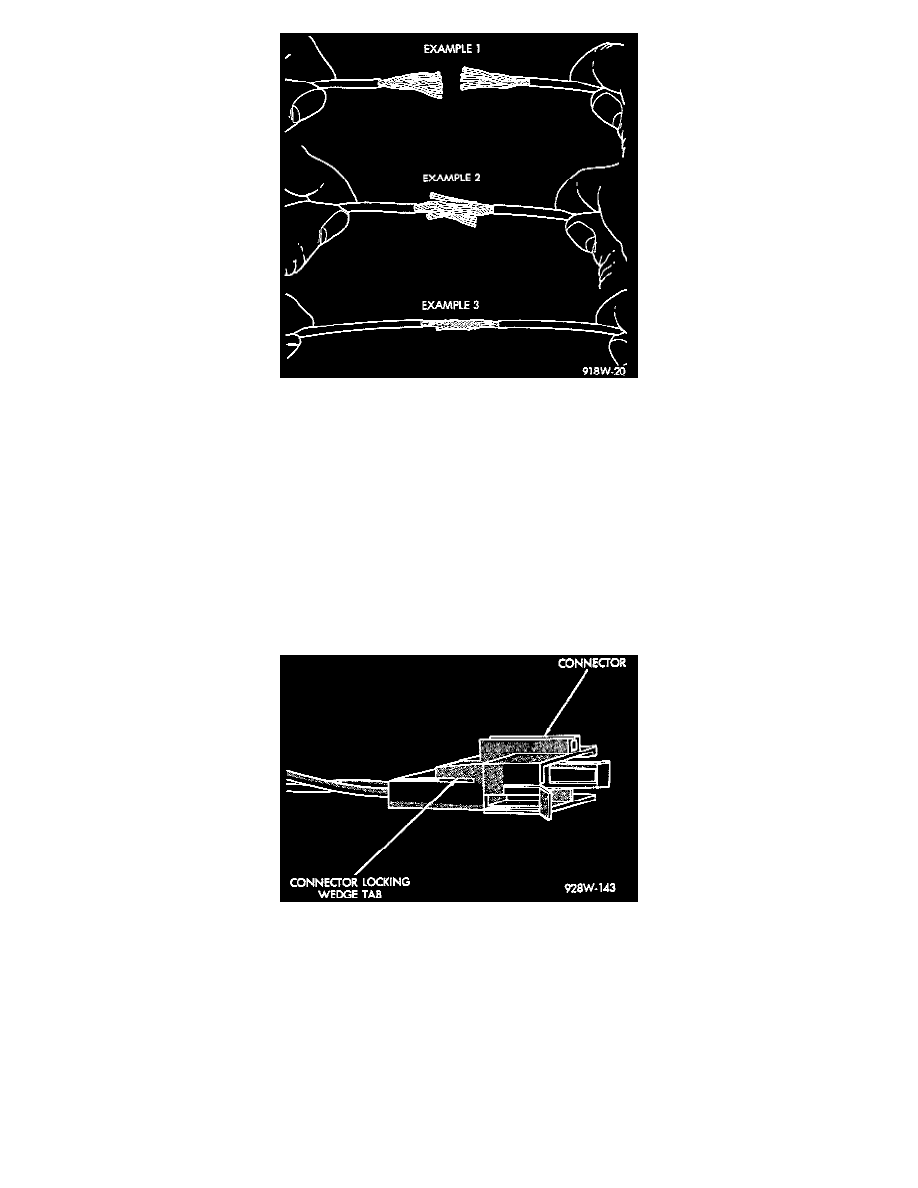

7. Spread the strands of wire apart on each of the exposed wires (Example 1).
8. Push the two ends of the wire together until the strands of wire are close to the insulation (Example 2).
9. Twist the wires together (Example 3).
10. Solder the wires together using rosin core type solder only. Do not use acid core type solder.
11. Center the heat shrink tubing over the joint and heat using a heat gun. Heat the joint until the tubing is tightly sealed and sealant comes out of both
ends of the tubing.
12. Secure the fusible link to the existing ones to prevent chafing or damage to the insulation.
13. Connect battery and test all affected systems.
Terminal Replacement
1. Disconnect battery.
2. Disconnect the connector being repaired form its mating half.
Connector Locking Wedge Tab
3. Remove connector locking wedge.
