Concorde V6-3.5L VIN F (1994)
Check Valve: All Technical Service Bulletins
Windshield Washer Nozzle - Freeze Up
NO: 8-20-95 Rev. A
GROUP: Electrical
DATE: Jul. 7, 1995
SUBJECT:
Windshield Washer Nozzle Freeze-Up
THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 08-20-95 DATED MAY 5, 1995 WHICH SHOULD BE REMOVED FROM
YOUR FILES. THE PART HAS BEEN CHANGED. ALL REVISIONS ARE MARKED WITH **ASTERISKS**.
MODELS:
1993 - 1995 (LH) Concorde/Intrepid/Vision/LHS/New Yorker
SYMPTOM/CONDITION:
In low ambient temperatures, the washer nozzles may become inoperative due to moisture freezing in the nozzle.
PARTS REQUIRED:
1
**4805010**
Valve, Windshield Washer Check
REPAIR PROCEDURE:
This bulletin involves adding a check valve to the windshield washer system.
1.
Locate and remove existing windshield washer hose in-line connector located just in front of the left hand shock tower.
2.

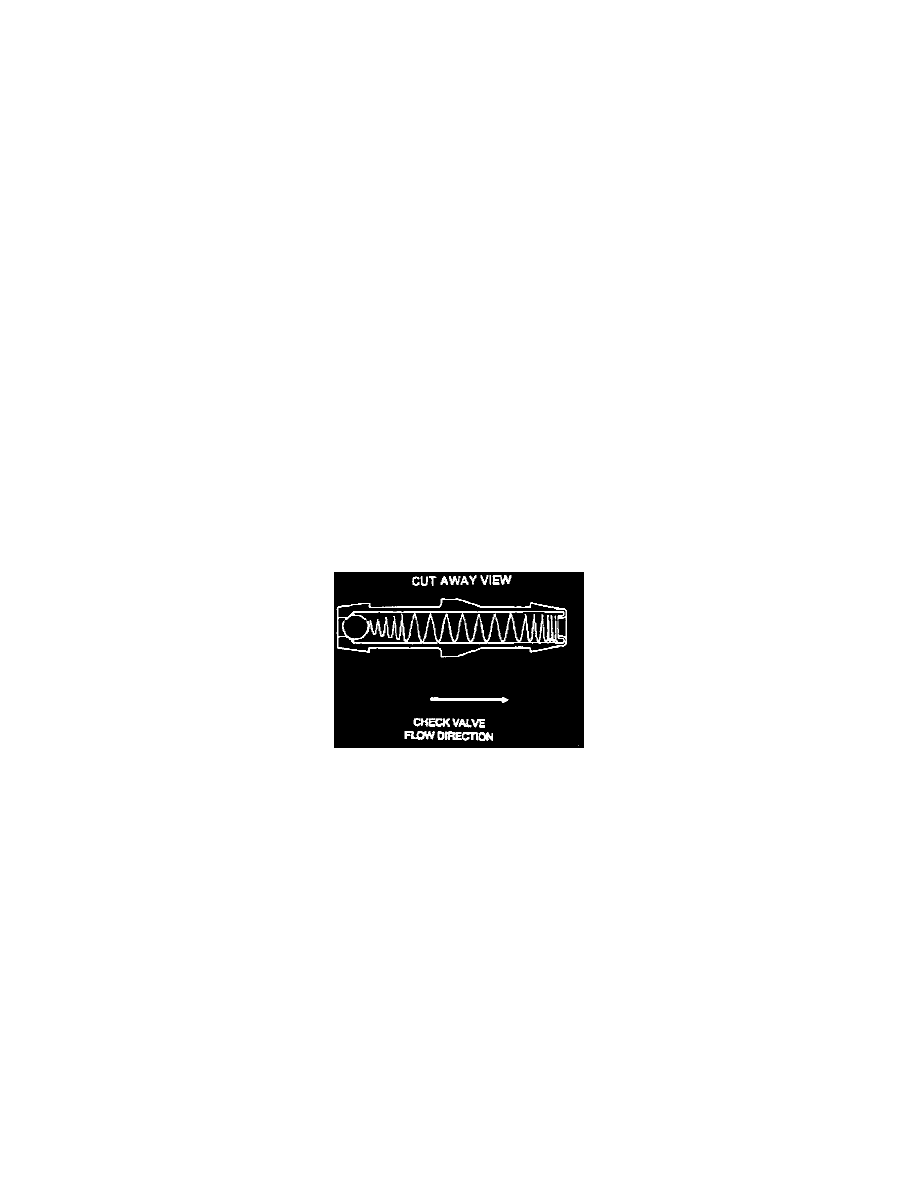

Install check valve, **P/N 4805010**, making sure to get the ball end of valve toward the reservoir.
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No:
23-43-20-92..........................................................................................................................................................................0.2 Hrs.
FAILURE CODE:
P8 - New Part
