Concorde V6-3.5L VIN V (2003)
Body and Frame
Sensors and Switches - Body and Frame
Power Mirror Switch / Component Information
Testing and Inspection / Power Mirror Switch Test
Page 8167
Page 2

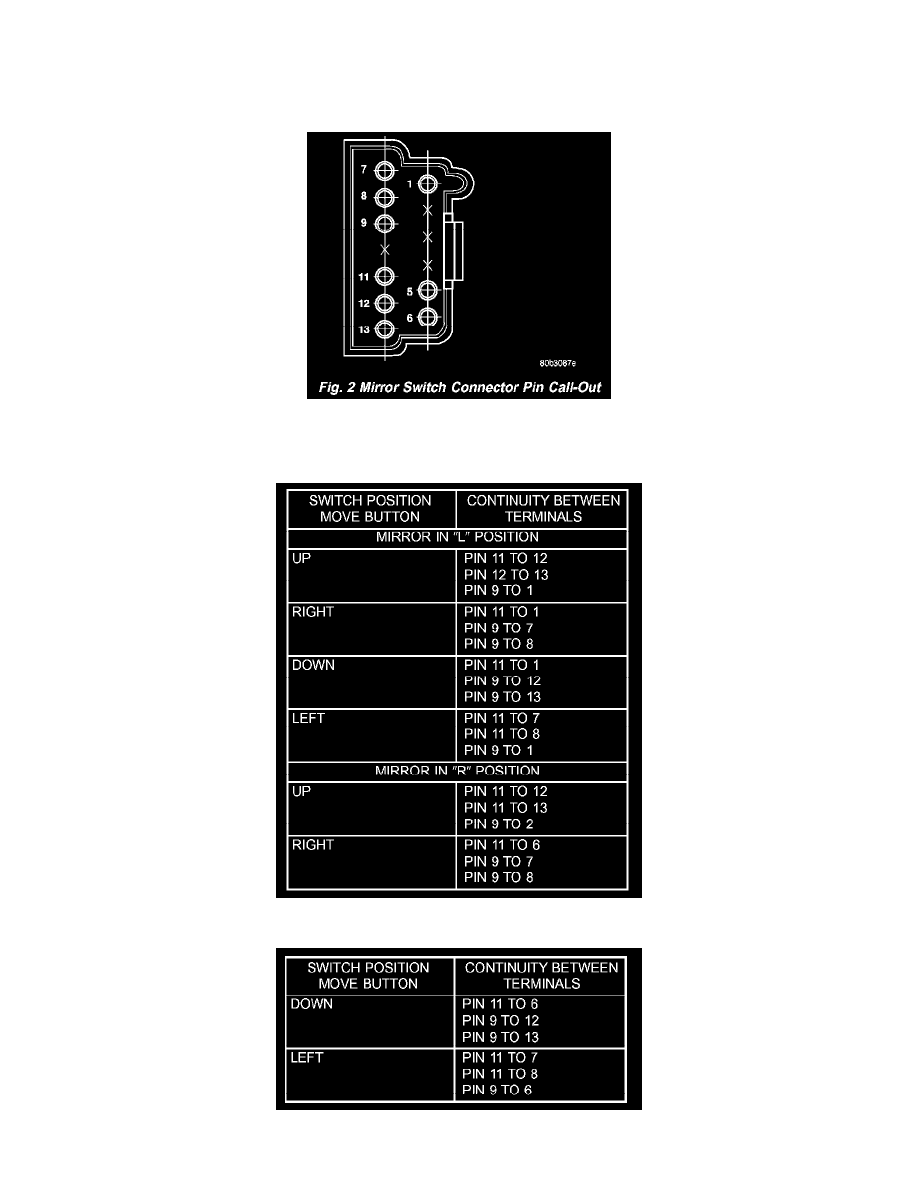

4. If test results are not obtained as shown in the Mirror Switch Test table, replace the switch.
