Concorde V6-3.5L VIN V (2003)
Hose/Line HVAC: Service and Repair
A/C Discharge Hose/Line Replacement
A/C DISCHARGE LINE
REMOVAL
WARNING: REVIEW THE WARNINGS IN THE FRONT OF THIS SECTION BEFORE PERFORMING THE FOLLOWING
OPERATION.
1. Open the hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Recover the refrigerant from the system. Refer to: Heating and Air Conditioning, Service and Repair, Refrigerant System Recovery, See:
Heating and Air Conditioning/Service and Repair/Procedures/Refrigerant System Recovery

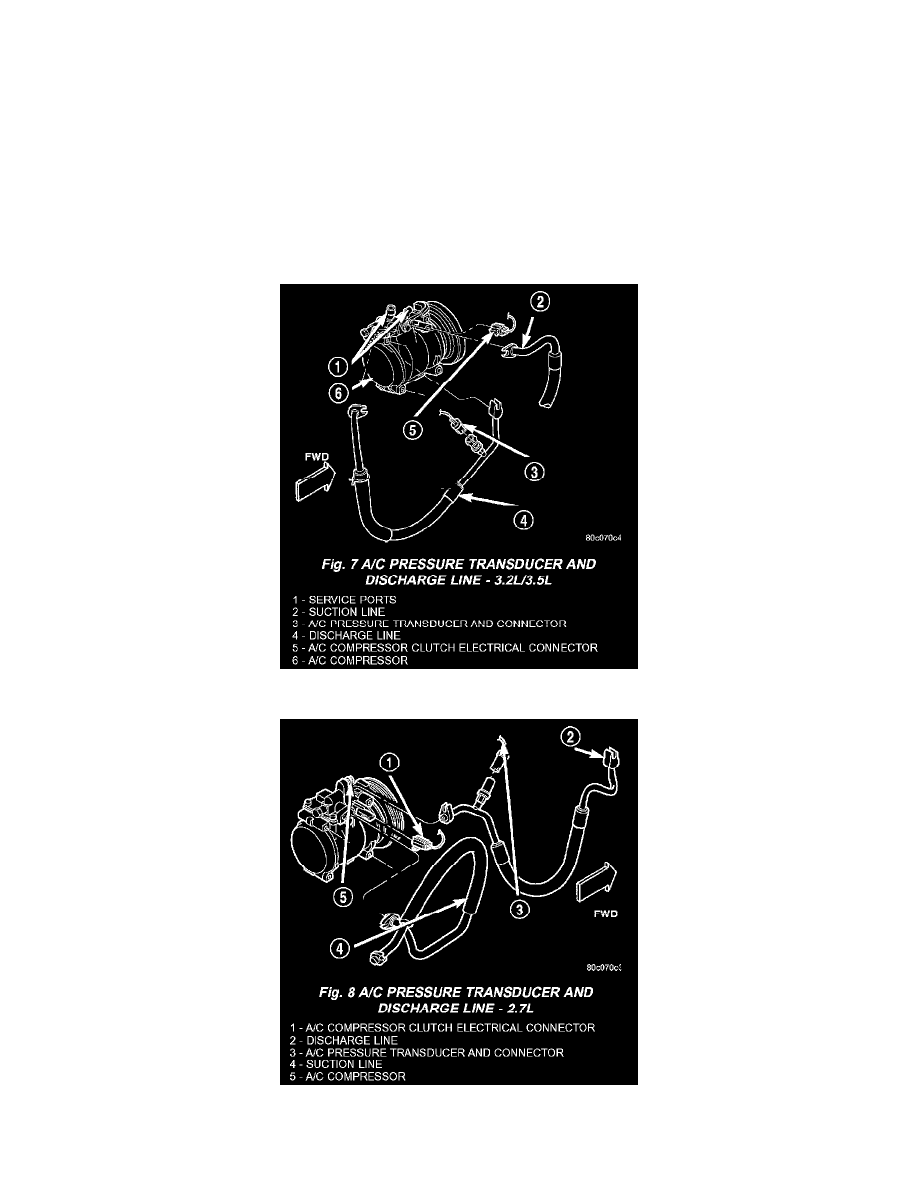

Fig.7 A/C Pressure Transducer And Discharge Line - 3.2L/3.5L
Fig.8 A/C Pressure Transducer And Discharge Line - 2.7L
