Crossfire SRT-6 V6-3.2L SC VIN N (2005)
Turn Signal Lamp: Service and Repair
Turn Signal Lamp
REMOVAL
1. Disconnect the negative battery cable.
2. Remove the access panel from the cargo area interior trim panel.

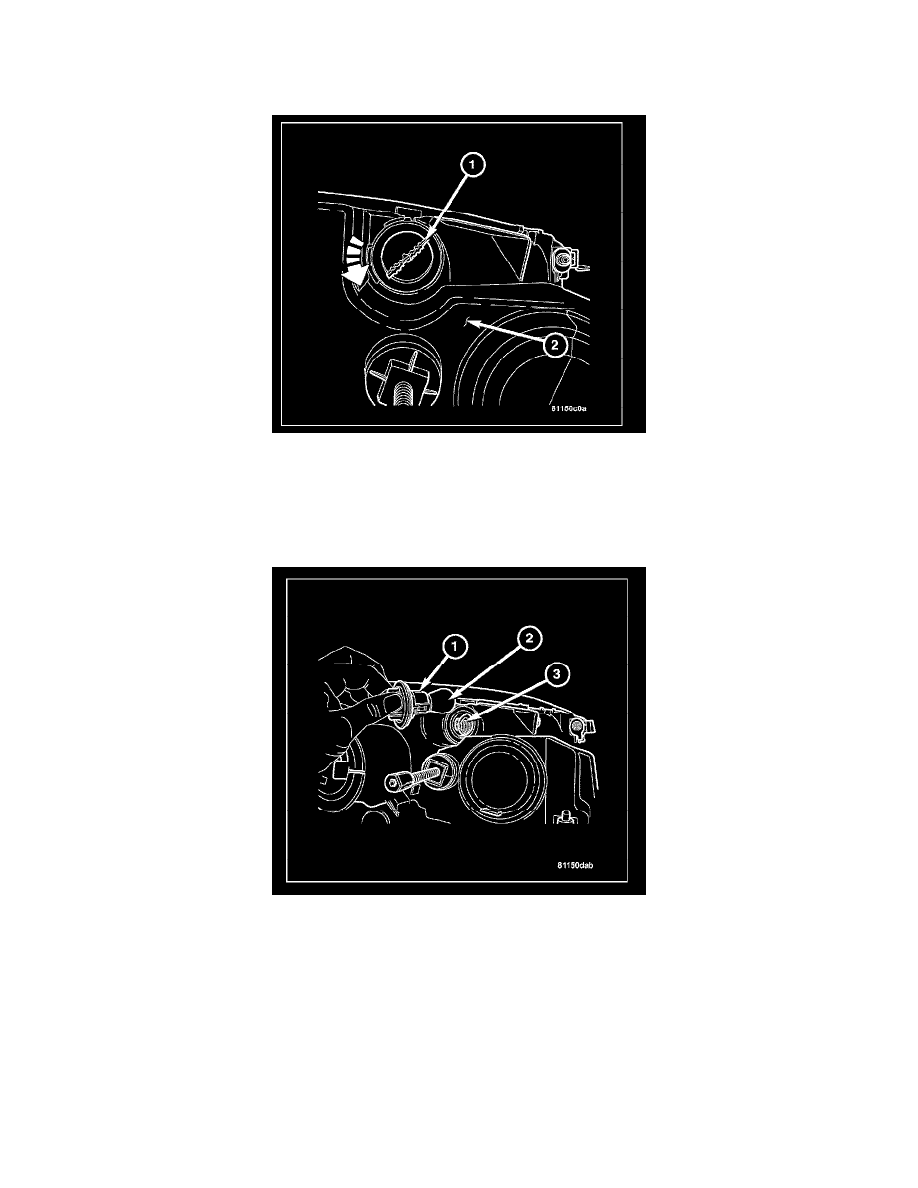

3. Rotate the turn signal lamp socket (2) counterclockwise and pull it from the tail lamp unit (1).
4. Remove the bulb from turn signal lamp socket (2).
INSTALLATION
1. Install the bulb (2) into the turn signal lamp socket (1).
2. Insert the turn signal lamp socket (1) into the tail lamp unit (3) and rotate clockwise to lock.
3. Install the access panel into the cargo area interior trim panel.
4. Connect the negative battery cable.
