Crossfire SRT-6 V6-3.2L SC VIN N (2005)
Constant Velocity Joint: Service and Repair
CV JOINT
REMOVAL

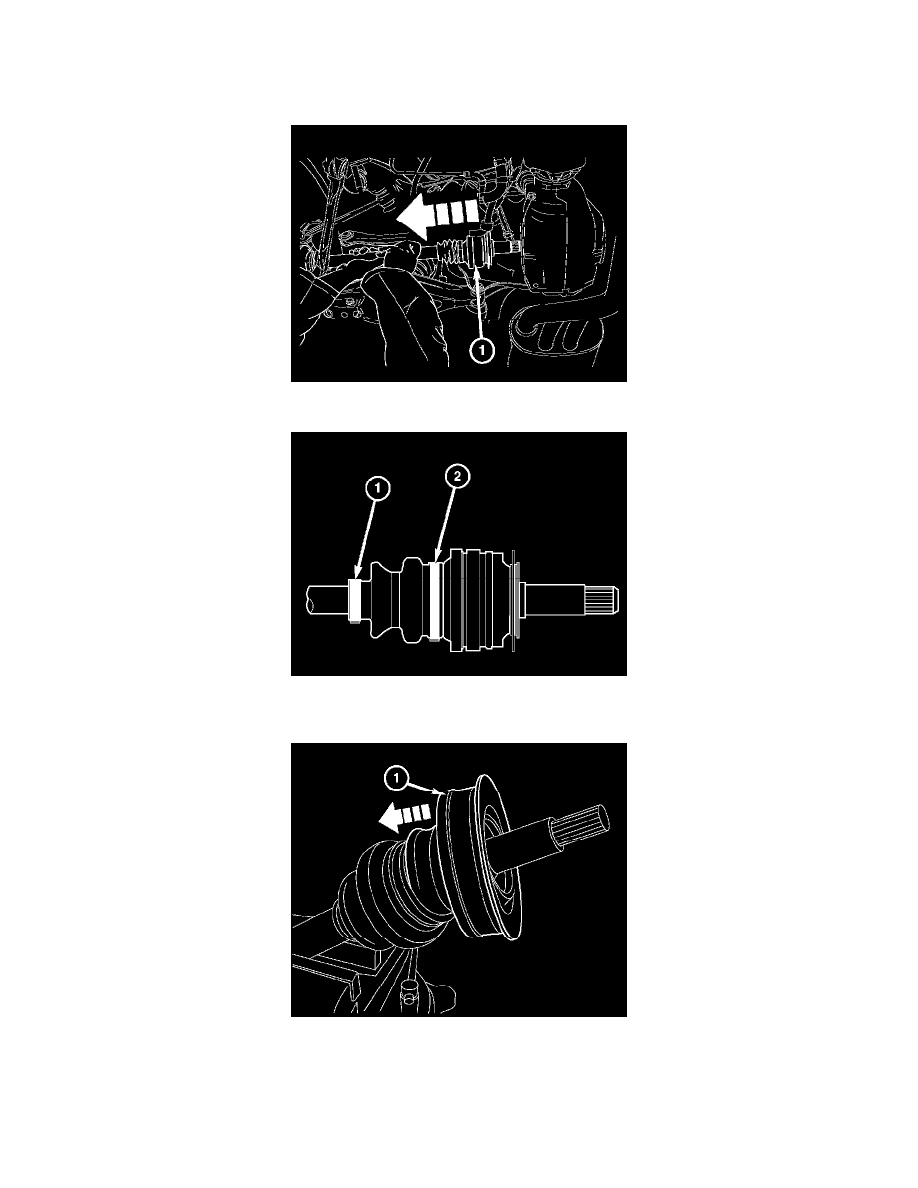

1. Remove the halfshaft from the vehicle.
2. Remove the inner C/V boot retaining clamp (1) from the axle halfshaft.
3. Remove the outer C/V boot retaining clamp (2) from the C/V joint housing.
4. Clamp the axle halfshaft in a vise.
CAUTION: Insure to use a vise that is equipped with protective caps on the jaws of the vise to prevent any damage to the axle halfshaft.
5. Remove the C/V boot from the C/V joint housing and slide it down the axle halfshaft.
6. Wipe away the grease to expose the C/V joint and the halfshaft.
