Crossfire SRT-6 V6-3.2L SC VIN N (2005)
Wiper Motor: Service and Repair
Wiper Module Replacement
REMOVAL
NOTE: If possible, cycle the Wiper System to position the wiper arms and linkage in the park position before removal is attempted.
1. Disconnect the negative battery cable.
2. Remove the wiper arms.
3. Remove the cowl grille.

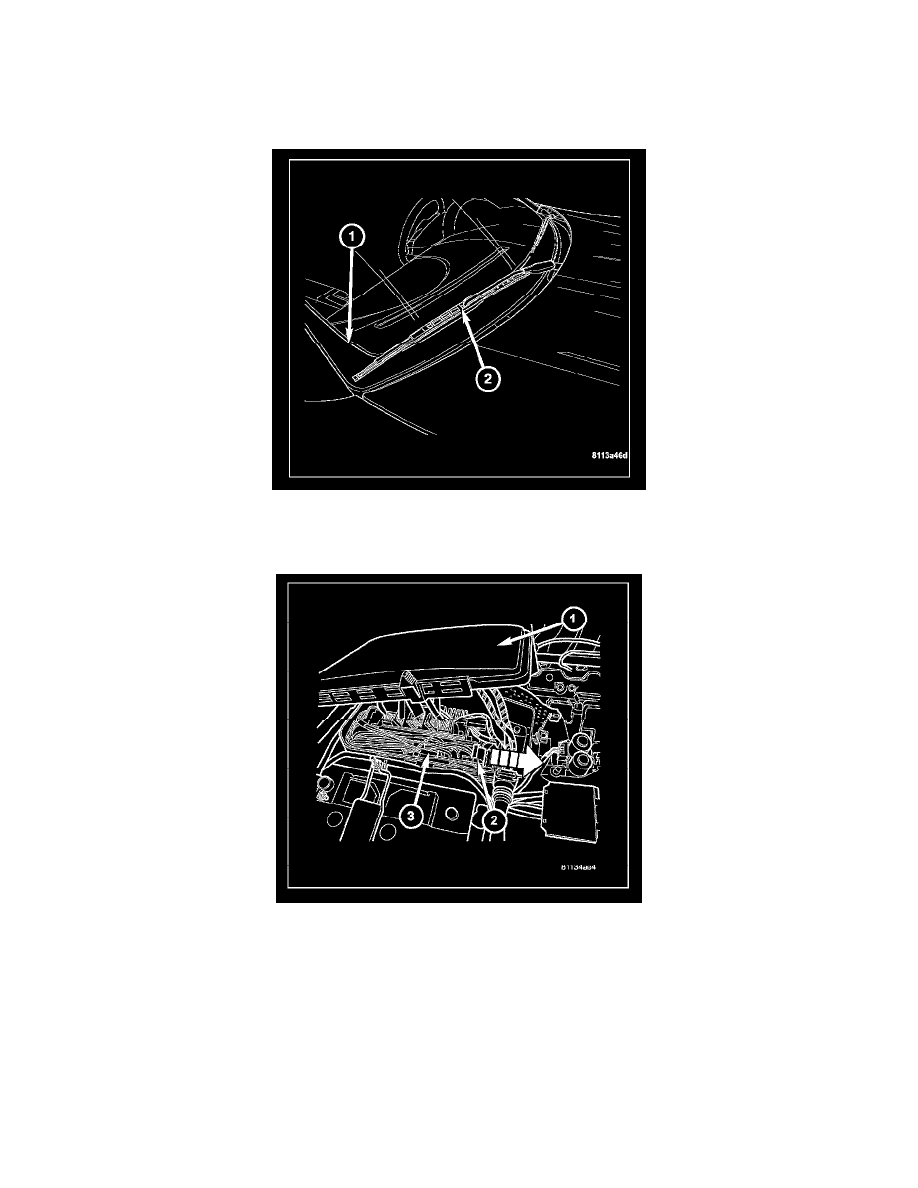

4. Remove the control module box cover (1).
5. Unlock and disconnect the wiper motor harness connector (2) from the Body Control Module (BCM) (3).
