Fifth Avenue V8-318 52L VIN P 2-bbl (1983) Compressor Clutch Testing

Page 1
background image

Compressor Clutch: Testing and Inspection

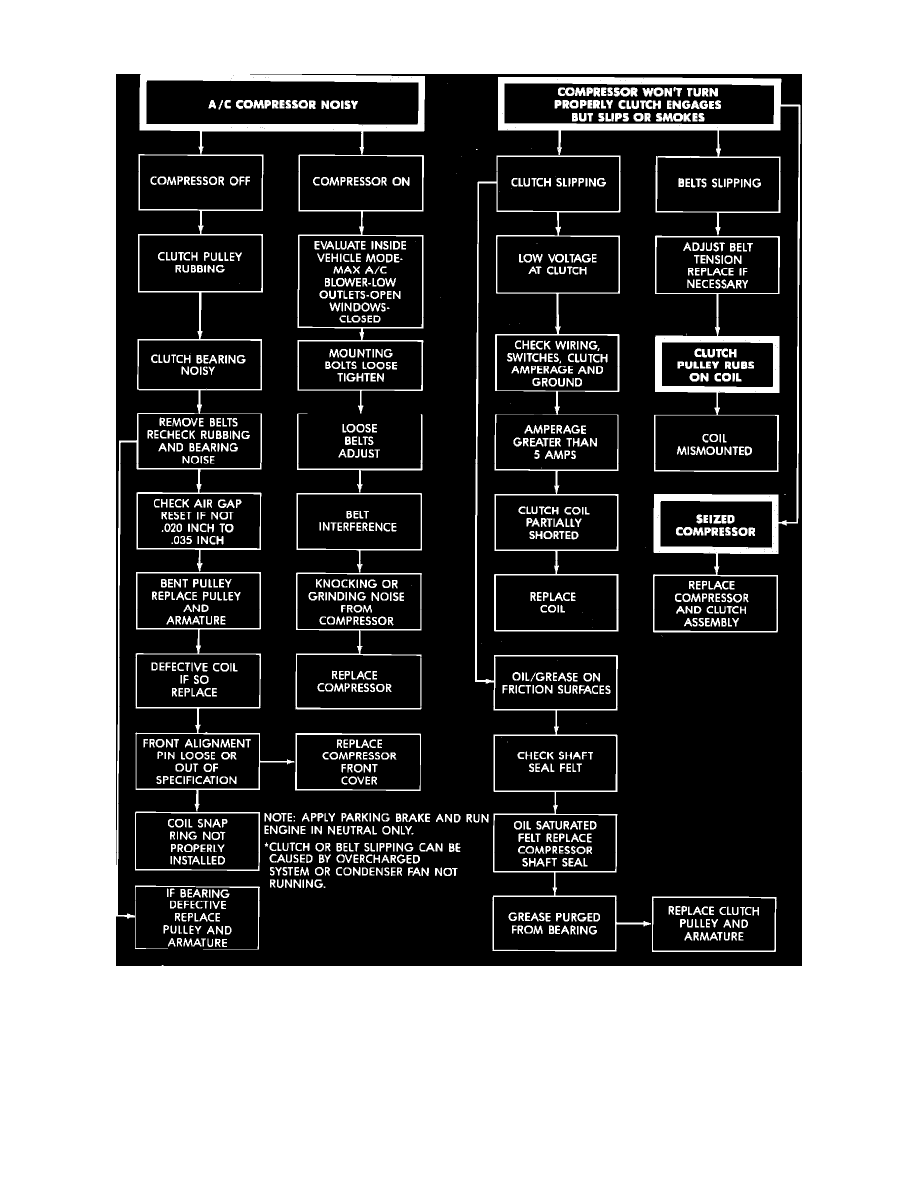

Compressor & Clutch Diagnosis (Part 1 of 2)
