Page 3
background image

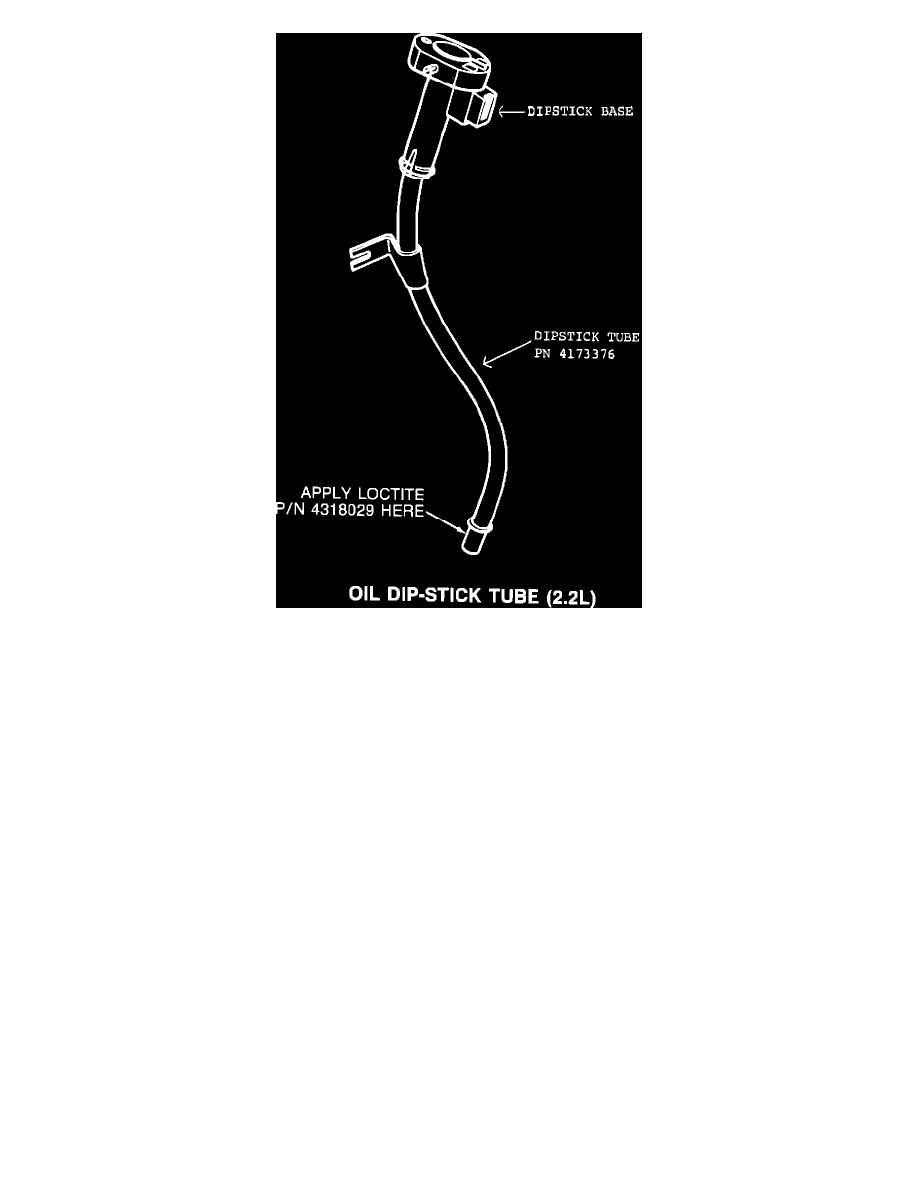

FIGURE 2

3.

Apply Loctite, PN 4318029, to the outside engine end of new Dipstick Tube, PN 4173376, and install (Figure 2).

4.

Reinstall dipstick and base, start engine, and check for leaks.

NOTE:

IF CUSTOMER IS STILL DISSATISFIED, THE DIPSTICK AND BASE CAN BE REPLACED WITH MANUAL DIPSTICK PN
4105446.  ADVISE CUSTOMERS THEY MUST RELY ON MANUAL OIL LEVEL CHECKS AND OIL INDICATOR LAMP FOR
MAINTAINING ENGINE OIL LEVEL AND TO DISREGARD OIL LEVEL MESSAGE DURING MONITOR SYSTEMS CHECK.

POLICY:

Reimbursable within the provisions of the warranty
