Laser L4-135 2.2L SOHC Turbo VIN E FI (1984)

Page 1
background image

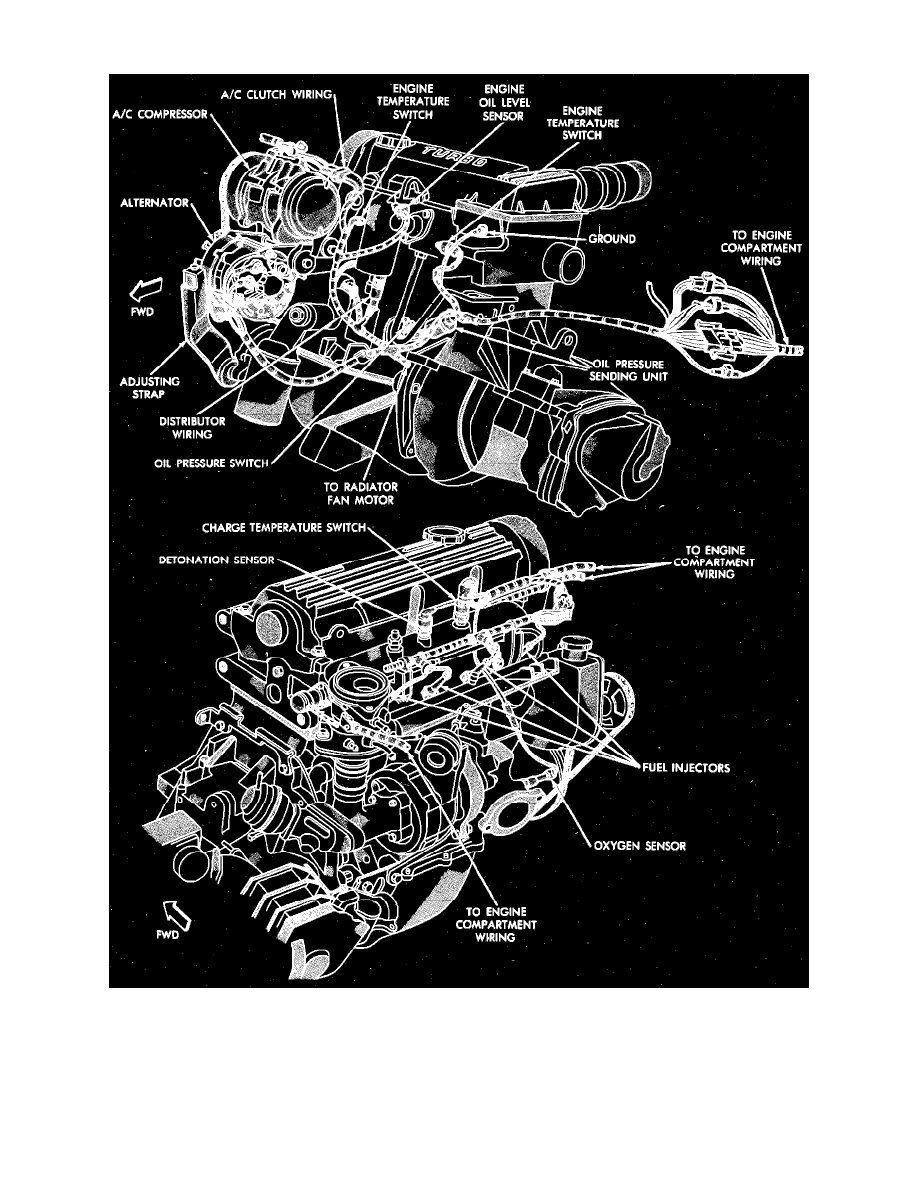

Intake Air Temperature Switch: Locations

Engine Electrical Components.

 Top Rear Center Of Engine

Applicable to:  2.2L Turbo
