Lebaron Convertible L4-156 2.6L SOHC VIN G 2-bbl (1985)
Dome Lamp: Electrical Diagrams

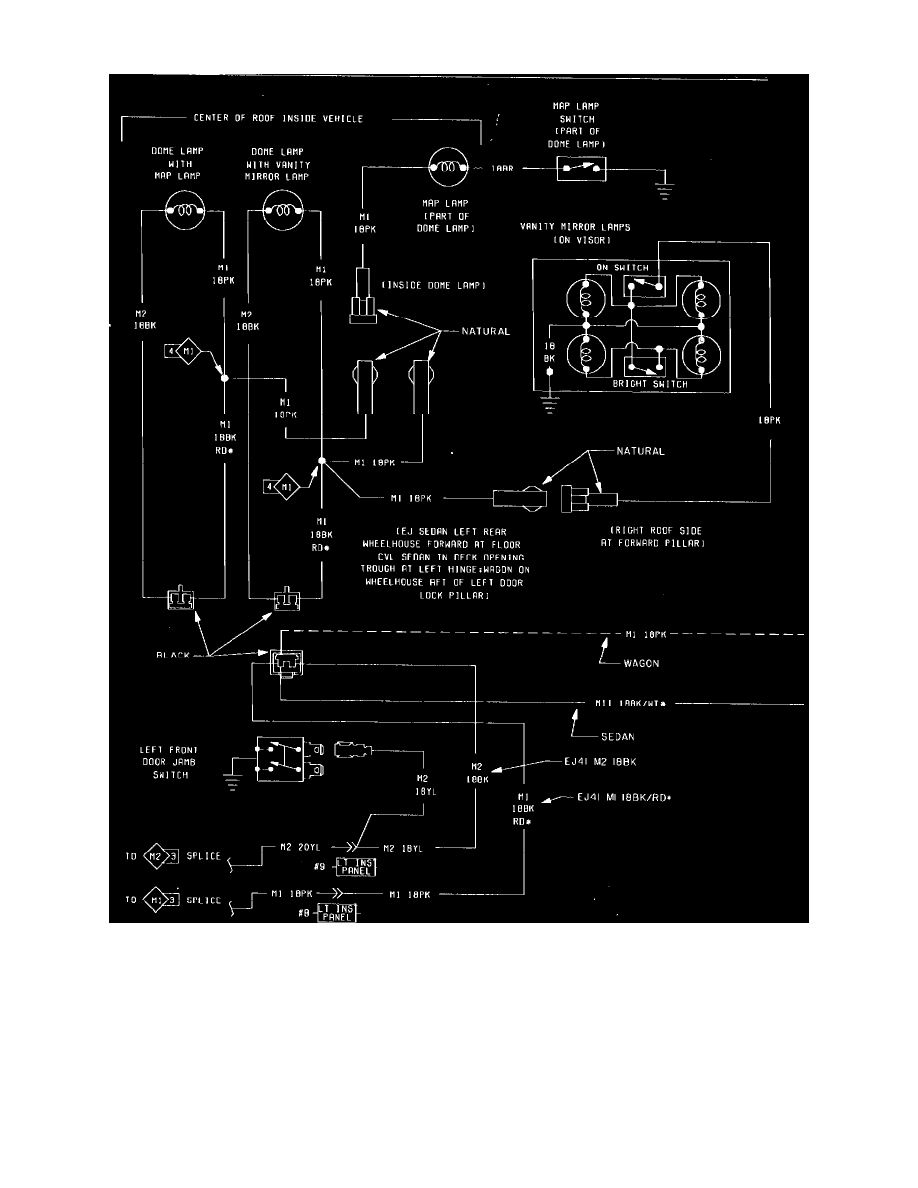

Fig. 25 Courtesy & Dome Lamp Wiring Circuit (Part 1 of 2). 1985 Except Convertible & New Yorker
