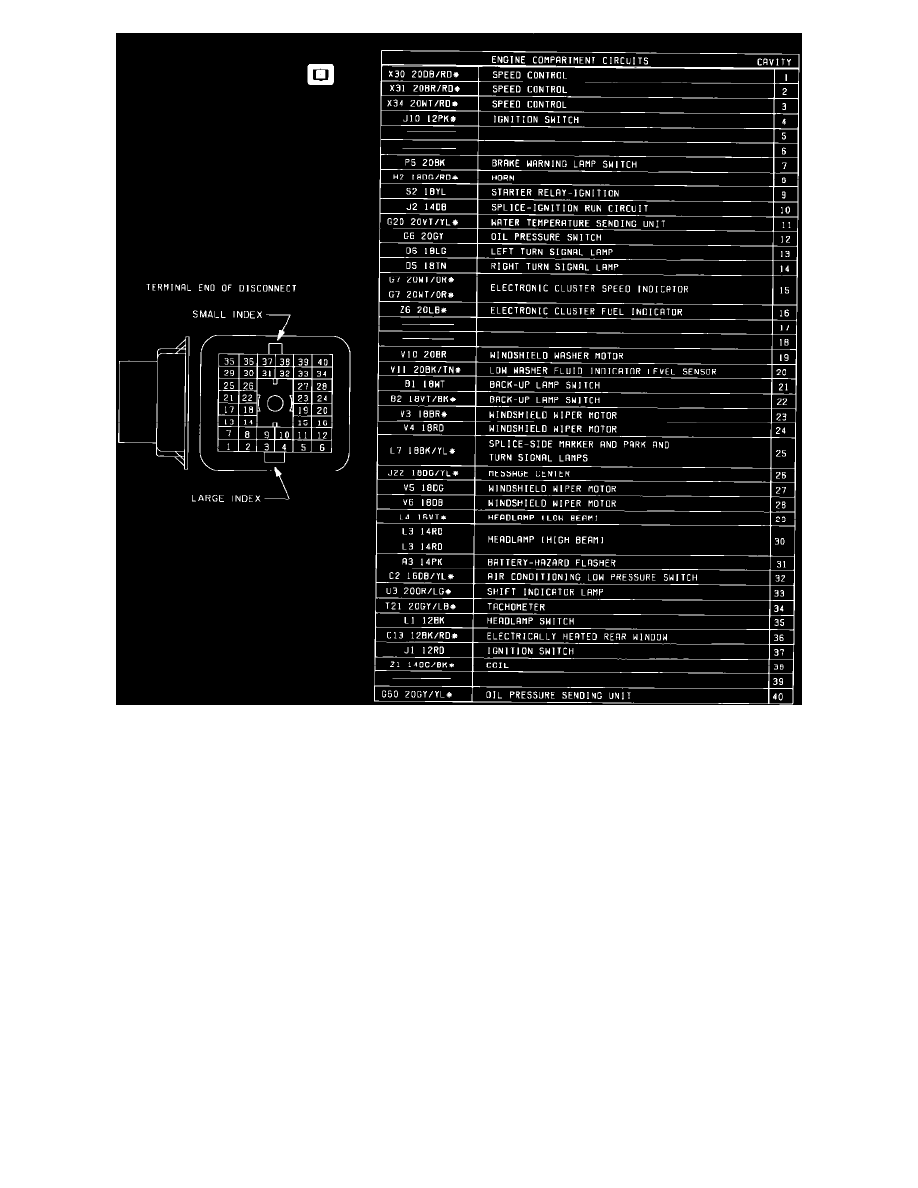

Fig. 5 Bulkhead Connector (40 Way). 1985 Engine Side

Power and Ground Distribution
Multiple Junction Connector
Component Information
Diagrams
Engine Compartment Side
