Door Lock Switch <--> [Power Door Lock Switch]|Locations|Page 229 > < Door Lock Switch <--> [Power Door Lock Switch]|Locations

Lebaron Coupe L4-135 2.2L SOHC Turbo VIN E FI (1987)

Page 1
background image

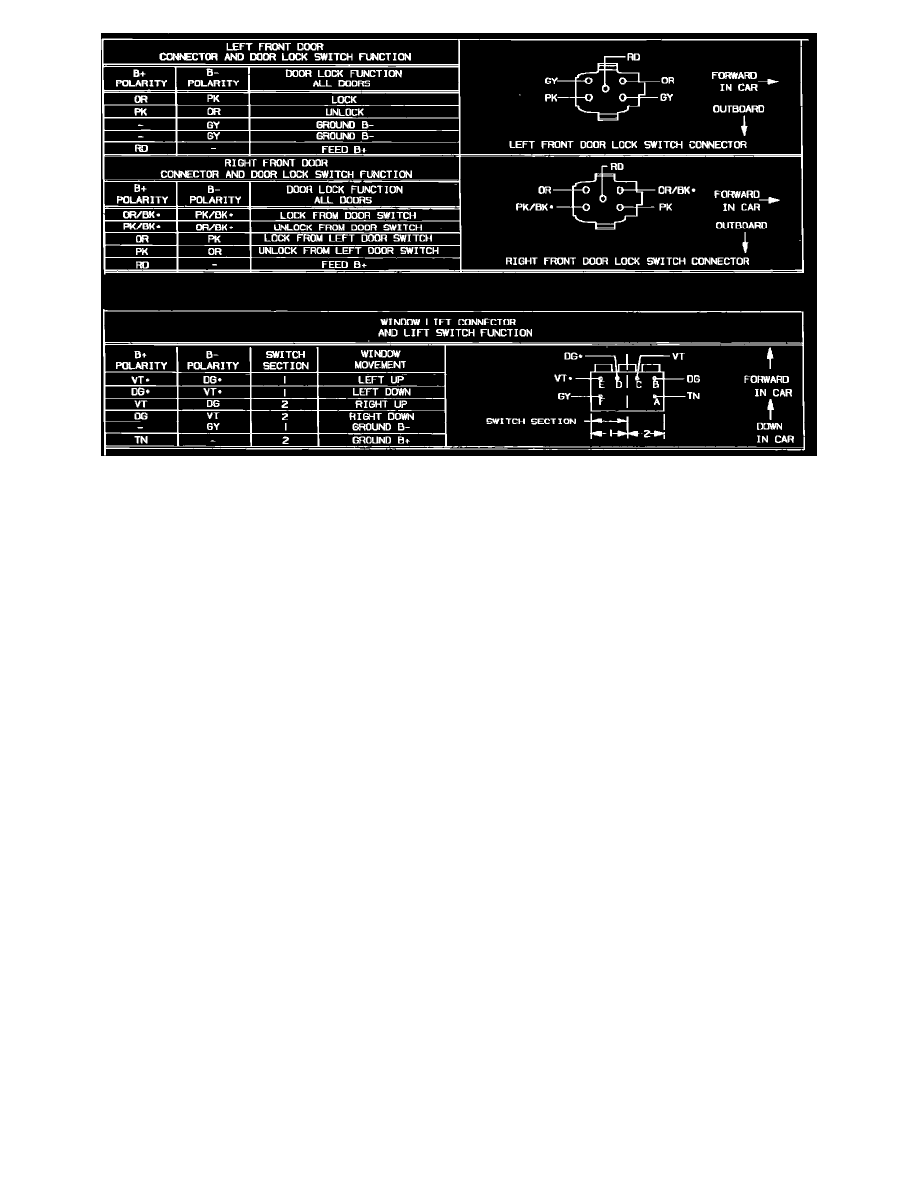

Fig. 15  Power Door Lock & Window. Connector
