Lebaron Coupe L4-153 2.5L SOHC Turbo VIN J FI (1991)
Alarm Module: Service and Repair
If the Vehicle Theft Security System module is being removed and no replacement module is being installed, the module wiring must be disconnected
while the engine is running. Failure to do so will cause a no-start condition.

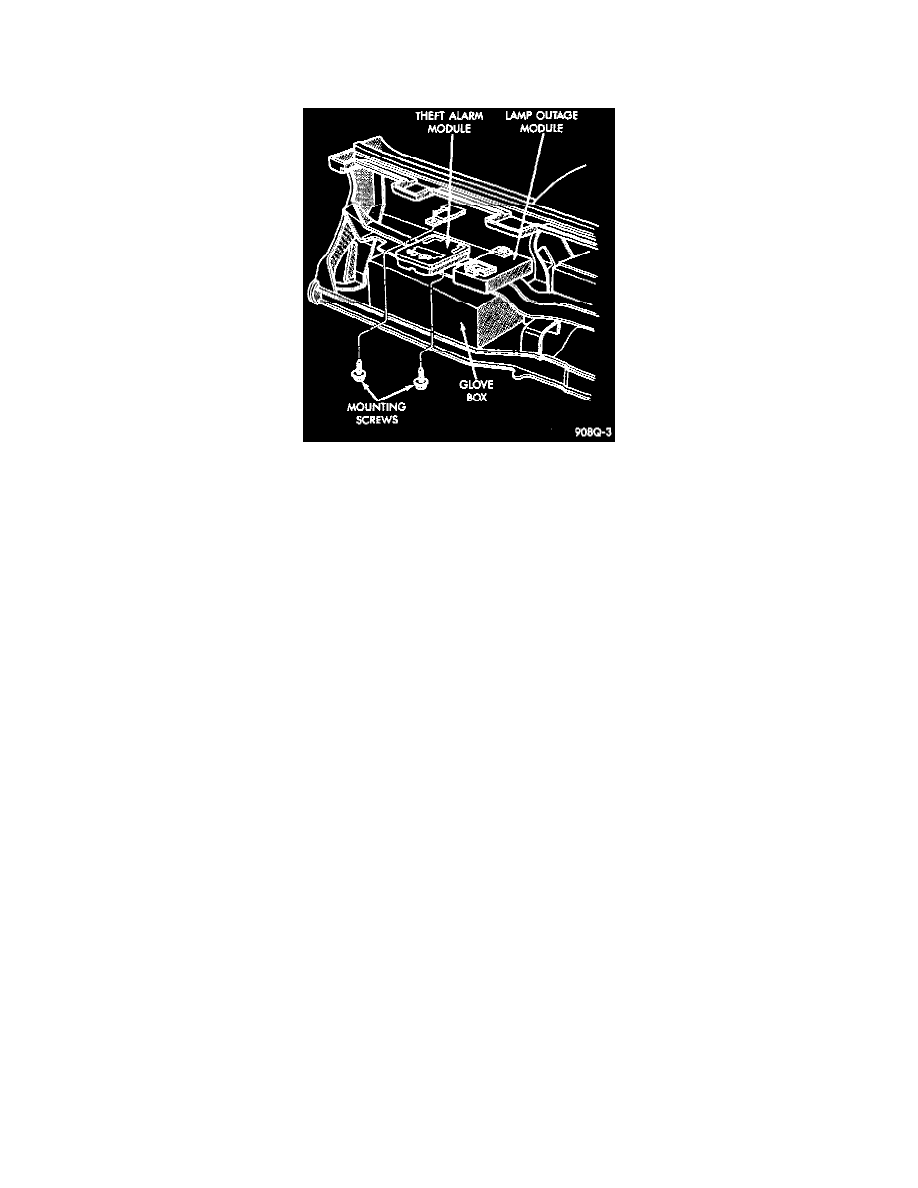

Vehicle Theft Security System Module
REMOVAL AND INSTALLATION
1. Remove upper right instrument panel silencer.
2. Remove glove box assembly.
3. Remove screws (4) attaching mounting bracket to instrument panel.
4. Disconnect wiring.
5. Remove screws (2) attaching module to bracket
6. For Installation, reverse Removal procedure.
