LHS V6-3.5L VIN F (1995)
Intake Manifold: Service and Repair
1. Release fuel system pressure as outlined under "Precautions".
2. Drain cooling system.
3. Remove engine cover from top of plenum.

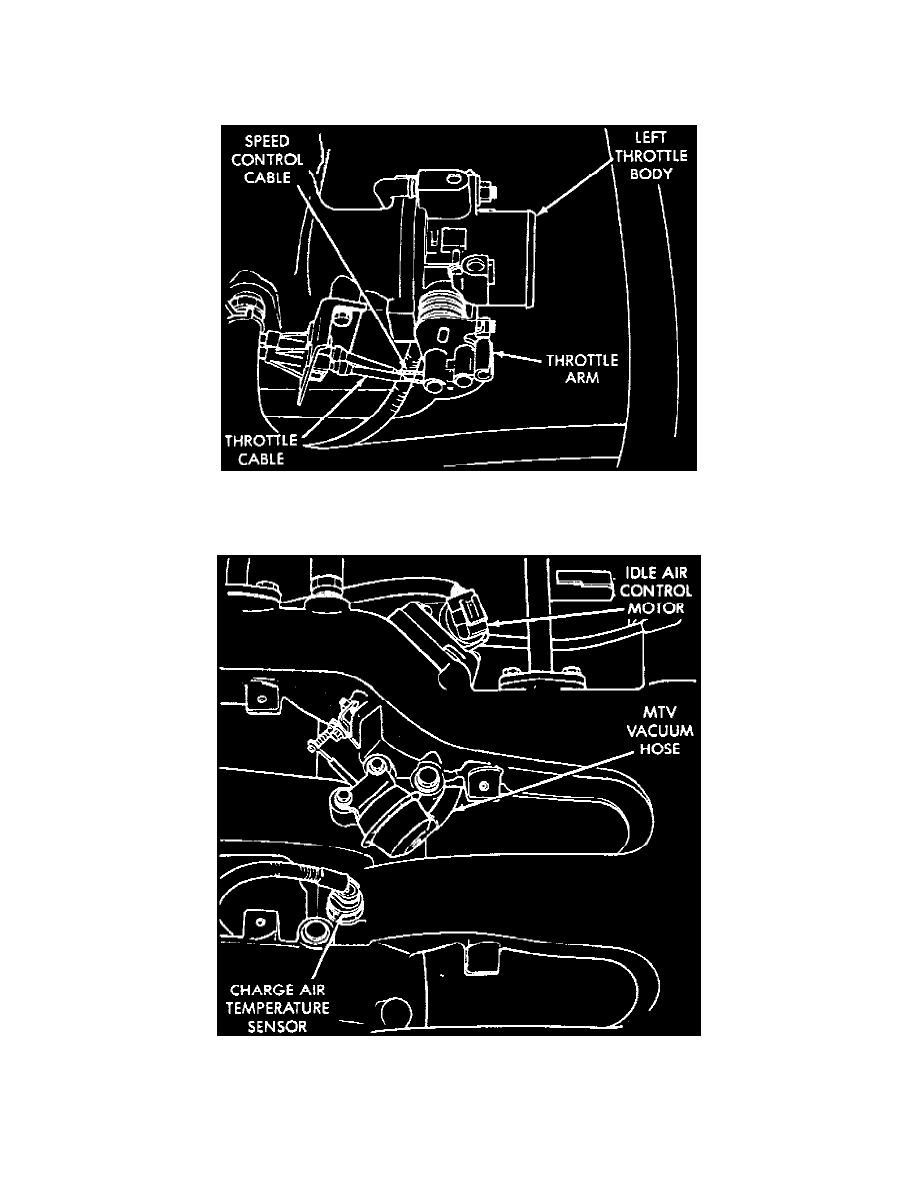

Fig.2 Throttle Lever
4. Remove accelerator cable and speed control cable from throttle arm.
Fig.3 Idle Air Control Motor,charge Air Temperature Sensor & MTV Component Location
5. Disconnect electrical connector from idle air control motor and charge air temperature sensor then remove vacuum hose from Manifold Tuning
Valve (MTV).
6. Remove ground screw from intake manifold.
