Page 7

background image

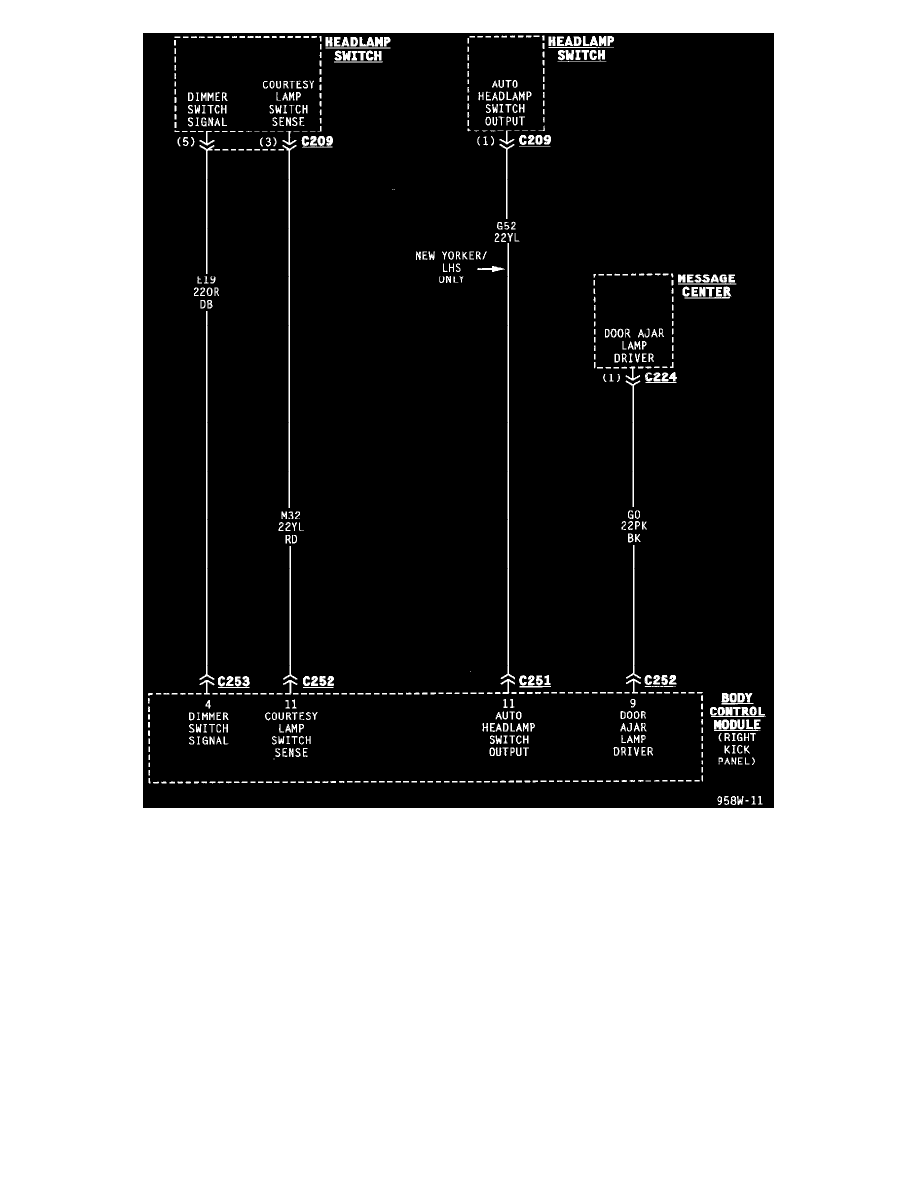

Body Control Module (Part 5 Of 14)

Powertrain Management
Computers and Control Systems
Body Controller <--> [Body Control Module] / Component Information
Diagrams / Diagram Information and Instructions
Page 3025
