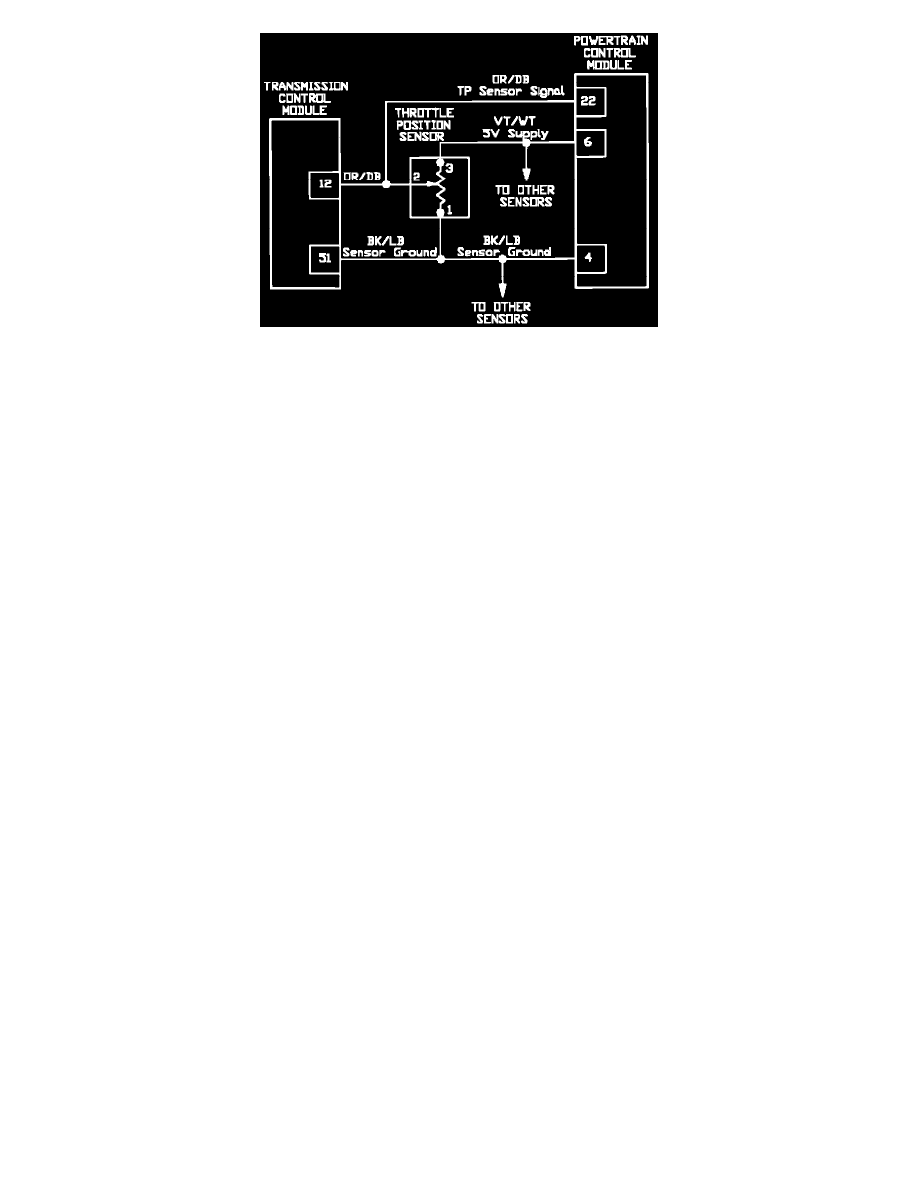

Throttle Position Sensor Circuit

Powertrain Management
Computers and Control Systems
Throttle Position Sensor / Component Information
Diagrams / Diagram Information and Instructions
Page 3892

Diagram Information and Instructions|Page 3893 > < Diagram Information and Instructions|Page 3891
