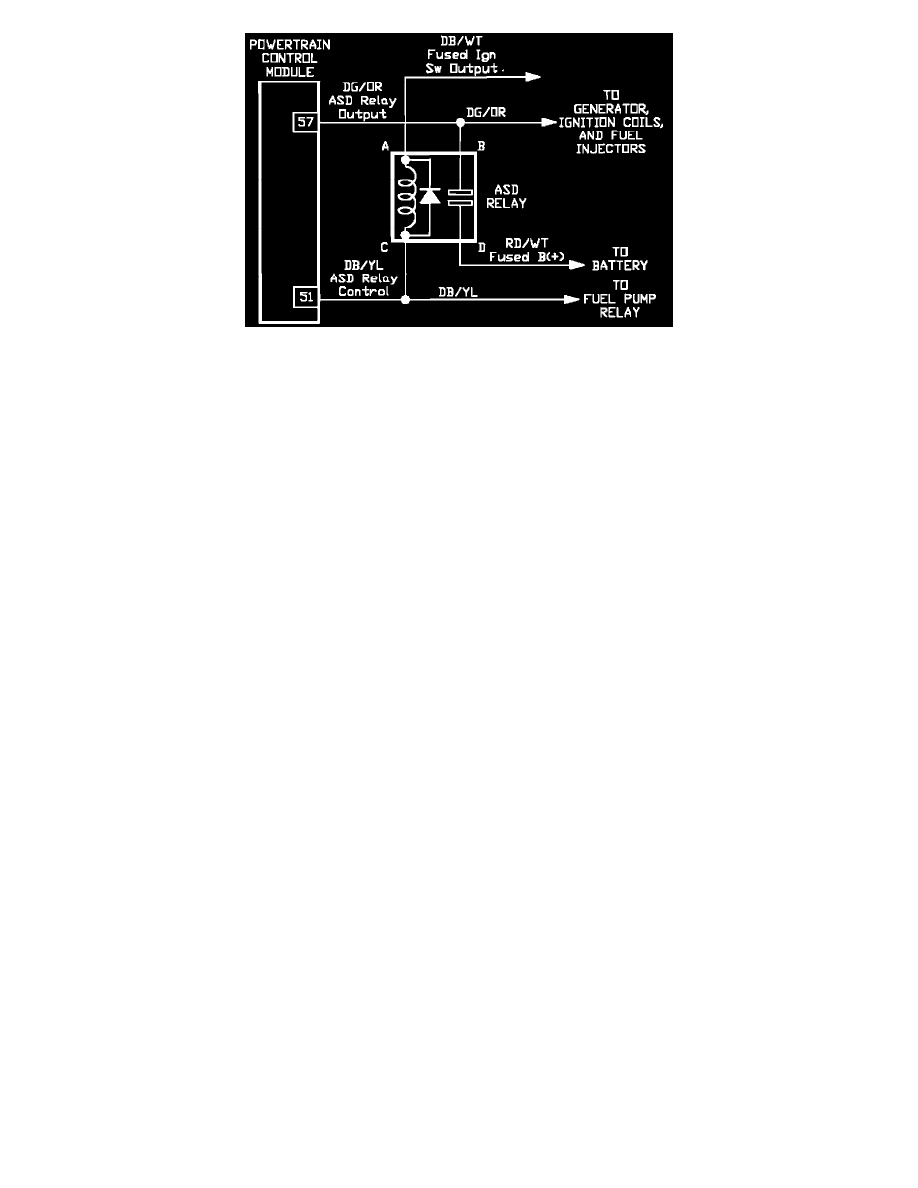

ASD Relay Circuit

Powertrain Management
Fuel Delivery and Air Induction
Automatic Shut Down (ASD) Relay <--> [Main Relay (Computer/Fuel System)] / Component Information
Diagrams / Diagram Information and Instructions
