LHS V6-3.5L VIN F (1995)

Page 1
background image

Fuel Pump Relay: Locations

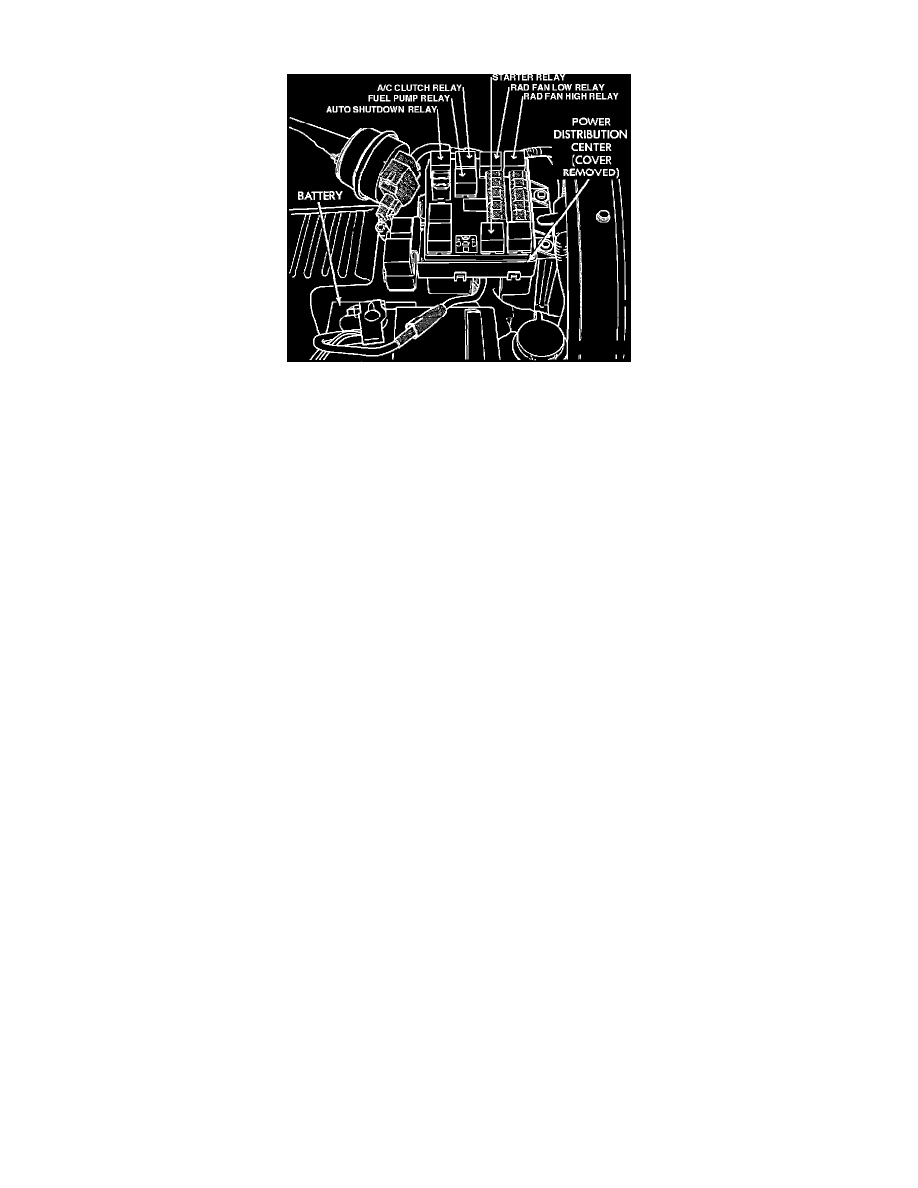

Power Distribution Center Location

The fuel pump relay is located inside the power distribution center.
