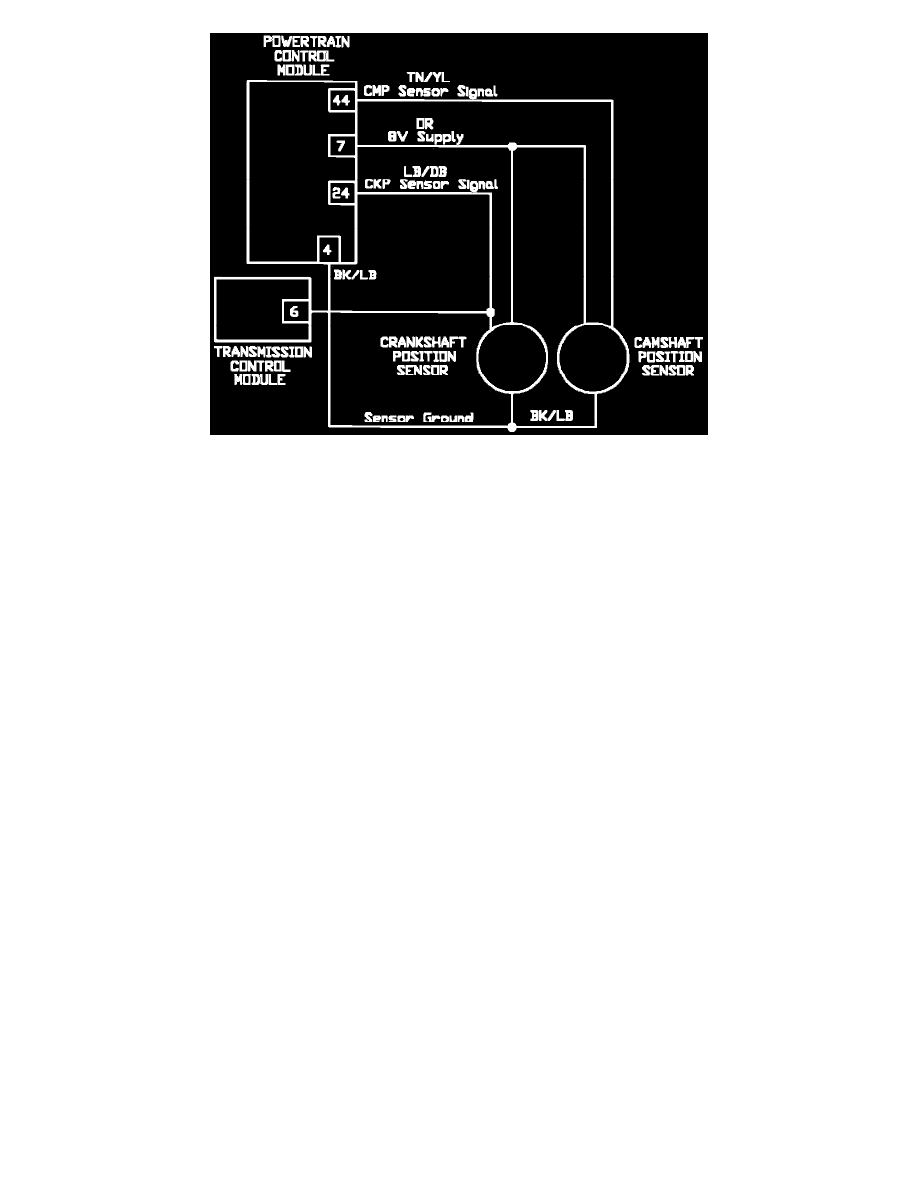

Camshaft And Crankshaft Sensor Circuit

Powertrain Management
Ignition System
Camshaft Position Sensor / Component Information
Diagrams / Diagram Information and Instructions
