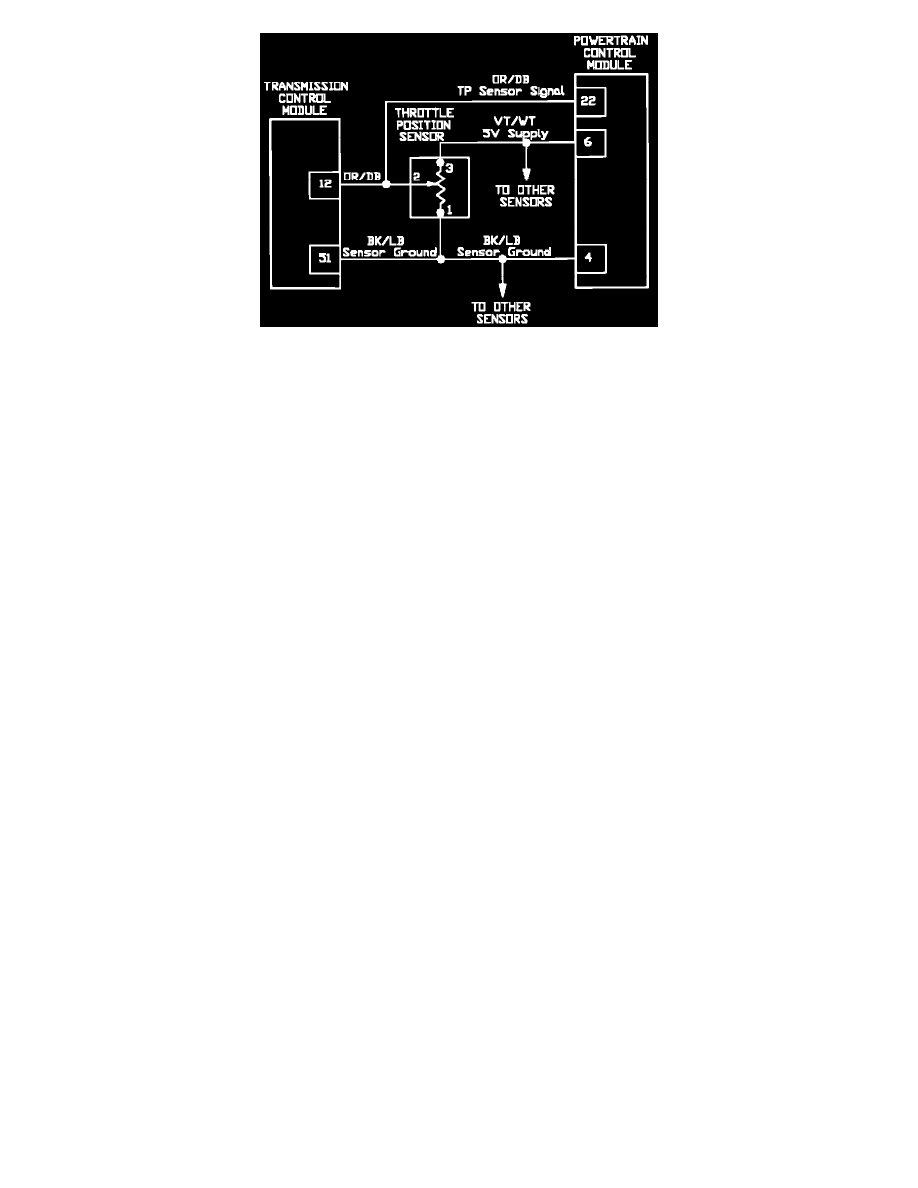

Throttle Position Sensor Circuit

Powertrain Management
Sensors and Switches - Powertrain Management
Sensors and Switches - Fuel Delivery and Air Induction / Throttle Position Sensor / Component Information
Diagrams / Diagram Information and Instructions
